YALE AERON® SMART WINDOW ACTUATOR
The all new Yale Aeron is a Smart Window Control System designed to operate your windows at the touch of a button, whether using a wall switch or the Aeron® Wireless Remote, or even from anywhere around the world using your smart device with the Yale Home App. The perfect solution to control hard-to-reach windows or those that are too heavy to be operated by hand. The Smart Aeron® Window Control System offers the perfect combination of convenience, flexibility and safety with the ability to control up to 30 windows from a single hub, opening and closing windows individually or in groups using the Yale Home App or Aeron® Remote.
Finishes: Black (BLK), White (WH), Special Powdercoat* (SPEC)
*Made to Order
Dimensions: 310L x 45W x 36H (dimensions are in mm)
Note: Actuator chain may need to be restricted, based on the sash size, as per the Aeron® window matrix - see Aeron® - Selection Chart.
Chain Limiting: Limit chain between 100-250mm at 50mm increments
Click Here To Preview Aeron® Specification Guide
Step 1. Specify Actuators
Window Sizes
- Maximum Window width Single Actuator - 900mm
- Maximum Window width Double Actuators* - 2400mm
- Minimum Window height - 300mm
- Must be in Synchronized connection
Step 2. Specify Power Supply
One power supply can power up to two actuator. For double actuator windows, the same power supply must be used for both actuators.
Yale Aeron® Standard 24VDC Power Supply sold separately
Step 3. Specify Hub
One Hub can connect up to 30 actuators and 4 remotes
Yale Aeron® Connect Plus Hub sold separately
Step 4. Specify Remote
4 Remotes maximum per system
Yale Aeron® System Zigbee Remote sold separately
Aeron® Actuator Features
- Intuitive app controls: The app allows you to control all your windows actuators and offers preset options such as ‘closed,’ ‘vent,’ ‘half,’ and ‘full’ for easy window management
- Quieter operation: Whisper quiet, only 55dB even at full load
- Simultaneous operation: The actuators, equipped with 24V DC motors, can operate in unison, and be grouped together for synchronised control
- Wide window coverage: Synchronise two actuators to cater to wider windows, ensuring efficient operation
- Secure window seal: Each actuator provides a robust closing force of 9kg, ensuring a tight window seal when closed
- Durable construction: The Aeron® system features a strong and corrosion resistant stainless-steel chain (grade 304) for long-lasting performance
- Adjustable chain length: The chain length extension can be easily adjusted in predefined lengths using a slide switch, allowing you to limit the window opening as desired

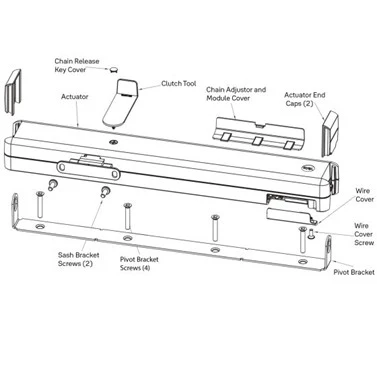

- Easy installation: The removable sash bracket simplifies the installation process by disconnecting the chain, and the chain release key also enables the chain to move freely during installation meaning that installation can be completed without power connection
- Wireless setup: Once powered, no more wiring is required (unless hard-wired wall switch is desired), and all remaining setups can be done through wireless devices
- Zigbee Mesh network: Each actuator adds to the mesh network around the home, meaning that actuators don’t need to connect back to a base Yale Hub device, but can connect to each other. This reduces the need for multiple Yale Hub units around the home.
- Multiple control options: Operate the system conveniently through the Yale Home App, a handheld remote control, or a wall switch, offering versatility to suit your preferences
- Comprehensive compatibility: Suitable for awning or casement windows, the Aeron® system can be fixed to both timber and aluminium window frames.
| Yale Connect Plus Hub 2 | YAR/SWAA/HUB/-I-D |
| Yale Aeron System Zigbee Remote | YAR/SWAA/ZRT |
| Yale Aeron Actuator Zigbee Module | YAR/SWAA/ZMD |
| Yale Aeron Sync Loom | YAR/SWAA/SSL |
| Yale Aeron 24VDC Power Supply | YAR/SWAA/SPS |
| Yale Aeron Actuator Accessory Pack | YAR/SWAA/AP |
| Yale Aeron Actuator End Cap Black | YAR/SWAA/EC/BLK |
| Yale Aeron Actuator End Cap White | YAR/SWAA/EC/WH |
| Yale Aeron Actuator End Cap Spec | YAR/SWAA/EC/SPEC |
| Yale Aeron Pivot Bracket | YAR/SWAA/PVT |
| Yale Aeron Wiring 6pin Connector Plug | YAR/SWAA/W6CP |
