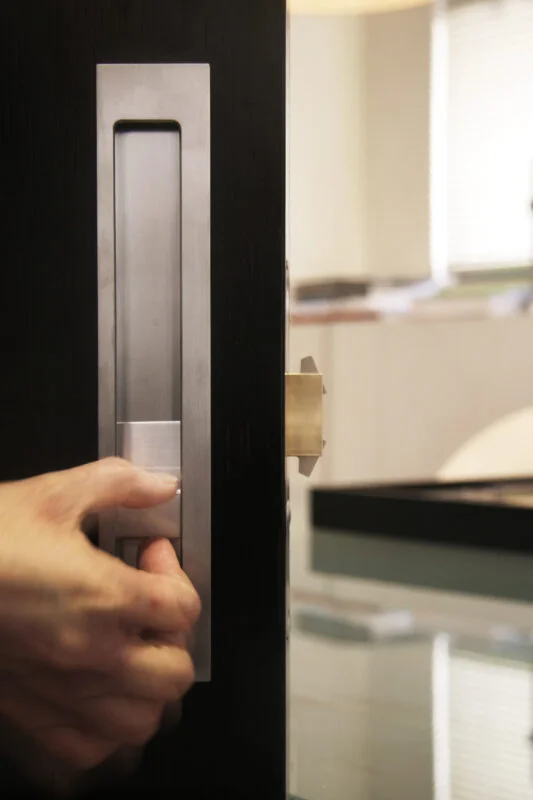

Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6

HALLIDAY + BAILLIE OFFSET FLUSH PULL LOCK FOR SLIDING DOORS - HB1650 SERIES

HALLIDAY + BAILLIE OFFSET FLUSH PULL LOCK FOR SLIDING DOORS - HB1650 SERIES

The HB 1650 Offset Pull Door Set is a mid-sized series for use on sliding doors where scale is required, or the doors are heavy. The matching HB 1650 D series can be specified for oversized swing and pivot doors for extra purchase, and in a bi-fold situation.
Sets utilize the longer HB 677 flush pulls which offer a deeper internal finger area and an offset grip to one side resulting in left and right-handed options. Please indicate whether a left or right-handed snib flush pull is required for order.


System Configuration Options:
HB1650 – Privacy Set, Snib In, Emergency Release Out, HB690 Standard Body
HB1652 – Snib Inside, Blank Out, HB690 Standard Body
HB1653 – Snib Inside, Nothing Out, HB690 Standard Body
HB1654 – Snib Both Sides, HB690 Standard Body



Handling:

  • Left Hand
  • Right Hand

Note: minimum 45mm + Sliders needed

Flush Pull Material : Diecast Zinc and Brass
Lock Body Material : Diecast Zinc, Brass, 316 Stainless Steel

Backset : 55mm

Minimum door thickness : 45mm

Flush pulls : 250mm x 45mm x 18mm

Internal grip depth: 16mm

Click HERE for HB1650 technical downloads.

Suitable for timber or aluminium doors.

Finishes Available:
Satin Chrome, Polished Chrome, Brushed Nickel, Polished Brass, Electro Black Ace, Electro Medium Bronze, Electro Dark Bronze, Appliance White, Dark Bronze, Black Chrome, Electro Flat White

For more information on the finishes click HERE.
Please note only the finishes listed on this page are available for purchase.

Standard HB 1650 series set includes :
HB 690 Series Lock Body
Two HB 677 Flush Pulls
 HB 604 Fixing Kits (one set for HB 1653)
 Strike and Dust Box
 Two spindle lengths (please specify door thickness for doors over 60mm)
 Fasteners

This item is special order only, please allow 15-20 working days for dispatch.
