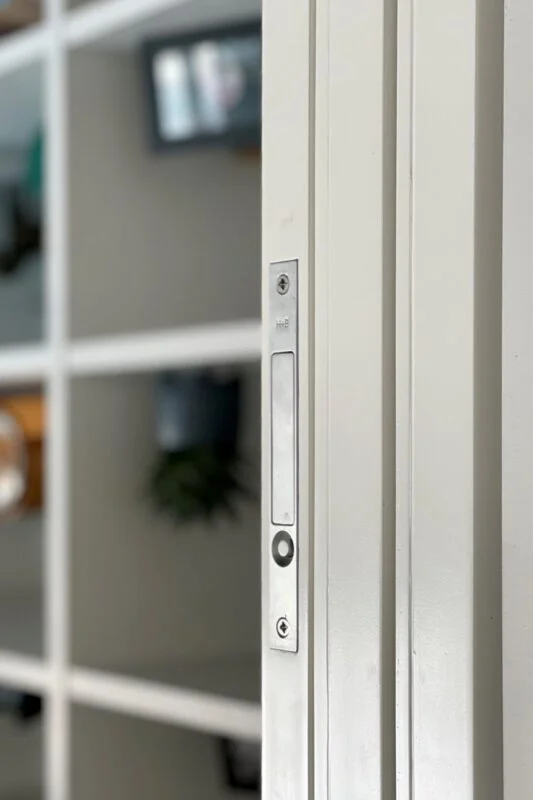

The HB680 Push Button Activated Edge Pull for pocket doors has been designed to match the 170mm height of the HB660 and HB660/35 Flush Pulls. Its slim faceplate, smooth push-button release and narrow 49mm body depth make it suitable for sliding wood passage doors, including wide stile timber and aluminum cavity sliding doors.

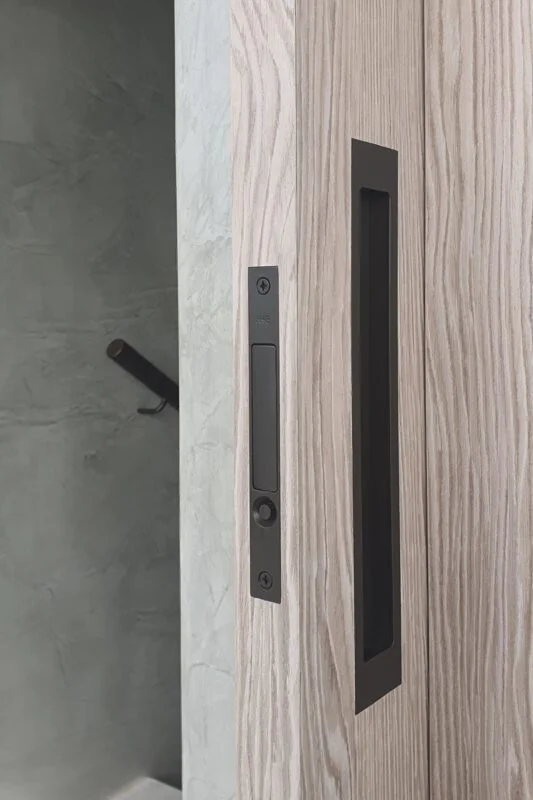

Shown here with the HB660 Flush Pull. A minimum door thickness of 38mm is required. For 35mm thick doors, please specify the HB660/35.

SOLD AS EDGE PULL ONLY - FLUSH PULLS SOLD SEPARATELY

Material : Diecast Zinc and Brass
Dimensions (overall) : 170mm x 20mm x 49mm
Dimensions (case to be morticed) : 100mm x 49mm x 12mm
Handle Projection : 19mm

Click HERE for HB680 technical downloads.

Suitable for timber or aluminium doors.

Finishes Available:

Satin Chrome, Polished Chrome, Brushed Nickel, Polished Brass, Electro Black Ace, Electro Medium Bronze, Electro Dark Bronze, Appliance White, Dark Bronze, Black Chrome, Electro Flat White

For more information on the finishes click HERE.
Please note only the finishes listed on this page are available for purchase.

This item is special order only, please allow 15-20 working days for dispatch.
