HALLIDAY + BAILLIE OFFSET FLUSH PULL GRIP DOORS - HB1480 SERIES

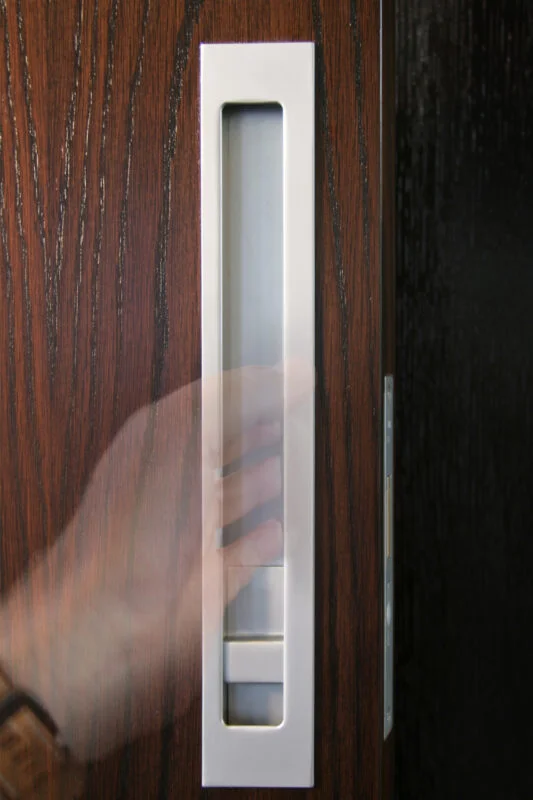

Product image 1

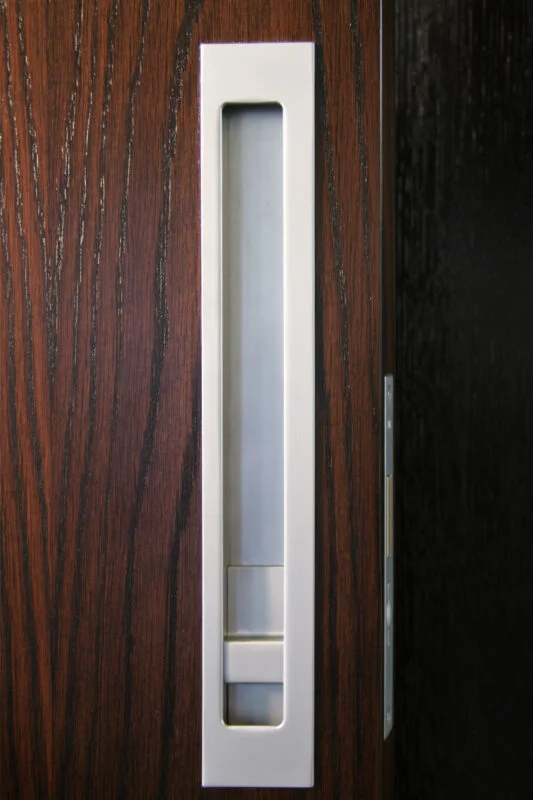

Product image 2
Product image 3
Product image 4
Product image 5
Product image 6
Product image 7
Product image 8

HALLIDAY + BAILLIE OFFSET FLUSH PULL GRIP DOORS - HB1480 SERIES

HALLIDAY + BAILLIE OFFSET FLUSH PULL GRIP DOORS - HB1480 SERIES

The HB 1480 Offset Pull Door series has been developed primarily for use on large doors where scale is required, or the doors are particularly heavy. These sets can function on oversized sliding doors for extra purchase, or on bifold doors.

Sets utilize the longer HB 1475 flush pulls which offer a deeper internal finger area and an offset grip to one side resulting in left and right-handed options. Please indicate whether a left or right-handed snib flush pull is required for order.

System Configuration Options:
HB 1480 – Snib on inside, Emergency Release on outside
HB 1482 – Snib on inside, Plain Flush Pull on outside
HB 1483 – Snib on inside, Nothing Outside
HB 1484 – Snib Both Sides



Handling:

  • Left Hand
  • Right Hand

Note: minimum 45mm + Sliders needed

Flush Pull Material : Diecast Zinc and Brass
Lock Body Material : Diecast Zinc, Brass, 316 Stainless Steel

Backset : 55mm

Minimum door thickness : 45mm

Flush pulls : 310mm x 50mm x 17mm

Internal grip depth: 15mm

Click HERE for HB1480 technical downloads.

Suitable for timber or aluminium doors.

Finishes Available:
Satin Chrome, Polished Chrome, Brushed Nickel, Polished Brass, Electro Black Ace, Electro Medium Bronze, Electro Dark Bronze, Appliance White, Dark Bronze, Black Chrome, Electro Flat White

For more information on the finishes click HERE.
Please note only the finishes listed on this page are available for purchase.

Standard HB 1480 series set includes :
 HB 690 Series Lock Body
Two HB 1475 Flush Pulls
 HB 1410 Fixing Kits (one set for HB 1483)
 Strike and Dust Box
 Two spindle lengths (please specify door thickness for doors over 60mm)
 Fasteners

This item is special order only, please allow 15-20 working days for dispatch.

Select Finish
Select System
Select Handling
From $369.00

Original: $1,230.00

-70%
HALLIDAY + BAILLIE OFFSET FLUSH PULL GRIP DOORS - HB1480 SERIES—

$1,230.00

$369.00

Product Information

Shipping & Returns

Description

The HB 1480 Offset Pull Door series has been developed primarily for use on large doors where scale is required, or the doors are particularly heavy. These sets can function on oversized sliding doors for extra purchase, or on bifold doors.

Sets utilize the longer HB 1475 flush pulls which offer a deeper internal finger area and an offset grip to one side resulting in left and right-handed options. Please indicate whether a left or right-handed snib flush pull is required for order.

System Configuration Options:
HB 1480 – Snib on inside, Emergency Release on outside
HB 1482 – Snib on inside, Plain Flush Pull on outside
HB 1483 – Snib on inside, Nothing Outside
HB 1484 – Snib Both Sides



Handling:

  • Left Hand
  • Right Hand

Note: minimum 45mm + Sliders needed

Flush Pull Material : Diecast Zinc and Brass
Lock Body Material : Diecast Zinc, Brass, 316 Stainless Steel

Backset : 55mm

Minimum door thickness : 45mm

Flush pulls : 310mm x 50mm x 17mm

Internal grip depth: 15mm

Click HERE for HB1480 technical downloads.

Suitable for timber or aluminium doors.

Finishes Available:
Satin Chrome, Polished Chrome, Brushed Nickel, Polished Brass, Electro Black Ace, Electro Medium Bronze, Electro Dark Bronze, Appliance White, Dark Bronze, Black Chrome, Electro Flat White

For more information on the finishes click HERE.
Please note only the finishes listed on this page are available for purchase.

Standard HB 1480 series set includes :
 HB 690 Series Lock Body
Two HB 1475 Flush Pulls
 HB 1410 Fixing Kits (one set for HB 1483)
 Strike and Dust Box
 Two spindle lengths (please specify door thickness for doors over 60mm)
 Fasteners

This item is special order only, please allow 15-20 working days for dispatch.
