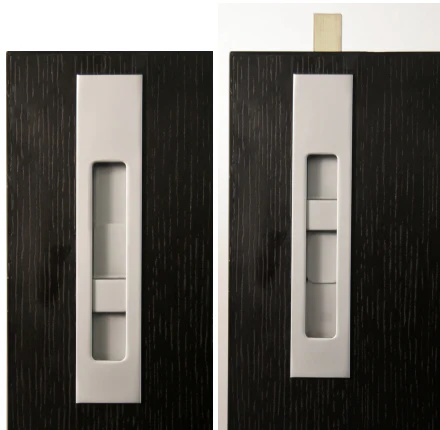

The HB 1810 has evolved to complement the range of Halliday + Baillie flush pulls. The HB 1810 Flush Bolt, ideal for aluminium joinery, is milled from solid brass and incorporates a tension adjusting mechanism in the back for smooth operation. For situations where the bolt is needed away from the top of the door (i.e. with over height
doors) please use the HB 1820 which has an additional one meter extension kit available (HB 1825).

Please check dimension drawing re suitability of the bolt throw offset with your track requirements.

Suitable for timber or aluminium doors. Use with the HB 1850 on timber doors. For timber doors the HB 1820 is often more suitable.

Material : Milled solid brass and stainless steel

Dimensions : 220mm x 38mm x 18mm

Click HERE for HB1810 technical downloads.

For use on timber doors, an HB1850 Timber Fixing Kit is required and can be purchased separately.

Please Order with timber fixing kit HERE for timber doors.

Finishes Available:
Satin Chrome, Mirror Chrome, Brushed Nickel, Polished Brass, Electro Black Ace, Electro Medium Bronze, Electro Dark Bronze, Appliance White, Oil Rubbed Bronze, Black Chrome, Electro Flat White

For more information on the finishes click HERE.
Please note only the finishes listed on this page are available for purchase.

This item is special order only, please allow 15-20 working days for dispatch.
