HALLIDAY + BAILLIE D OFFSET FLUSH PULL LOCK FOR HINGE AND PIVOT DOORS - HB1650D SERIES

HALLIDAY + BAILLIE D OFFSET FLUSH PULL LOCK FOR HINGE AND PIVOT DOORS - HB1650D SERIES

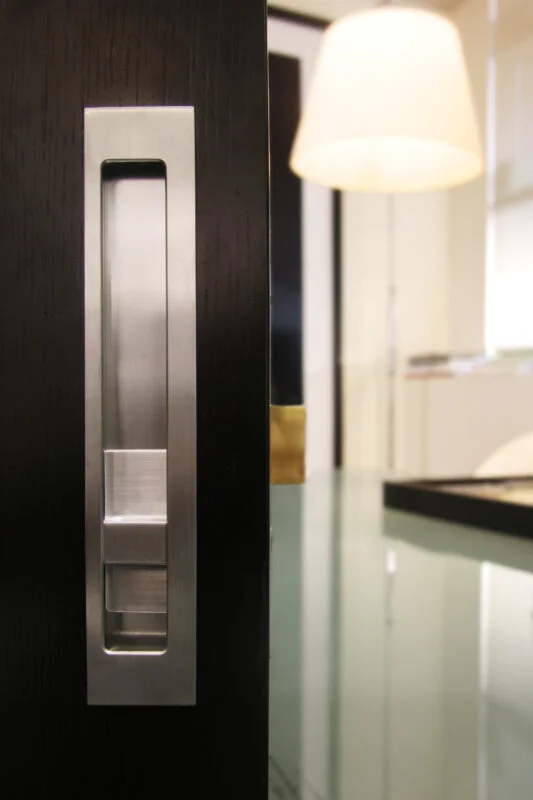

The HB1650 D Offset Pull Door Set is a mid-sized series for use on swing doors  including hinge, pivot, and bi-fold sets where scale is required or the doors are heavy. The matching sliding/pocketing door set is the HB 1650.

Sets utilize the longer HB 677 flush pulls which offer a deeper internal finger area and an offset grip to one side resulting in left and right-handed options. Please indicate whether a left or right-handed snib flush pull is required for order.
System Configuration Options:
HB1655 – Deadbolt Privacy Set, Snib In, Emergency Release Out, HB691 Body
HB1656 – Deadbolt Snib Inside, Blank Out, HB691 Body
HB1657 – Deadbolt Snib Inside, Nothing Out, HB691 Body
HB1658 – Deadbolt Snib Both Sides, HB691 Body



Handling:

  • Left Hand
  • Right Hand

Note: minimum 45mm + Sliders needed

Flush Pull Material : Diecast Zinc and Brass
Lock Body Material : Diecast Zinc, Brass, 316 Stainless Steel

Backset : 55mm

Minimum door thickness : 45mm

Flush pulls : 250mm x 45mm x 18mm

Internal grip depth: 16mm

Click HERE for HB1650D technical downloads.

Suitable for timber or aluminium doors.

Finishes Available:
Satin Chrome, Polished Chrome, Brushed Nickel, Polished Brass, Electro Black Ace, Electro Medium Bronze, Electro Dark Bronze, Appliance White, Dark Bronze, Black Chrome, Electro Flat White

For more information on the finishes click HERE.
Please note only the finishes listed on this page are available for purchase.

Standard HB 1650D series set includes :
 HB 690 D Series Dead Bolt Lock Body
Two HB 677 Flush Pulls
 HB 604 Fixing Kits (one set for HB 1657)
 Strike and Dust Box
 Two spindle lengths (please specify door thickness for doors over 60mm)
 Fasteners

This item is special order only, please allow 15-20 working days for dispatch.
