HALLIDAY + BAILLIE 250mm LENGTH SLIDING DOOR PRIVACY LOCK - HB695 SERIES

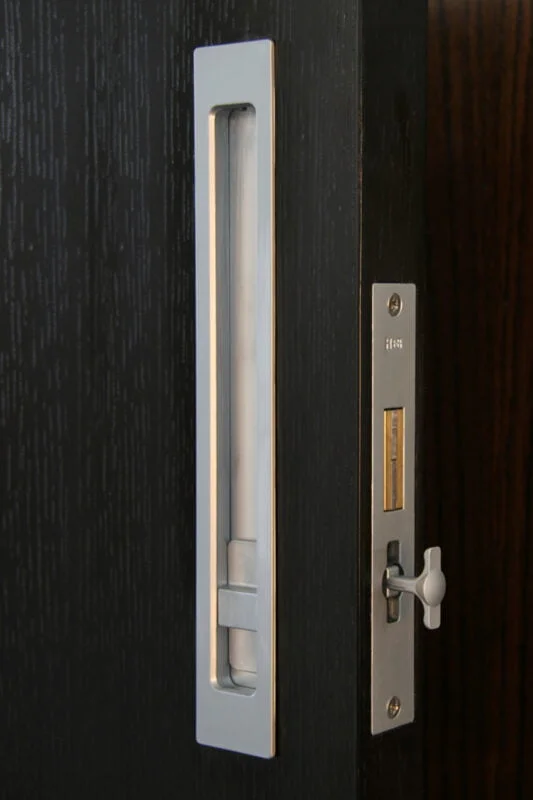

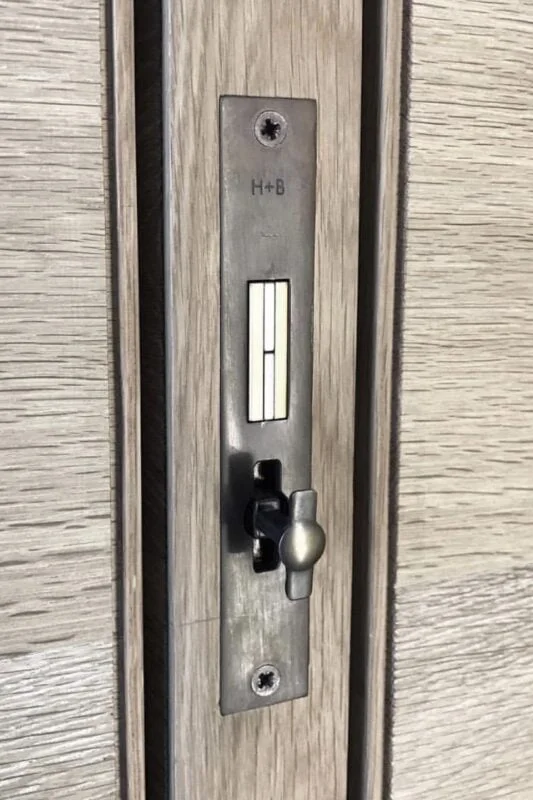

The HB 695 sliding door privacy set features an integrated push button-activated edge pull for pocketed doors. The operable “snib” block slides upwards to engage the lock. The discrete emergency release indicator flush pull can be operated with a pen or other object to disengage the lock from the exterior.Â
Utilizing the longer HB 665 flush pulls, this set is ideal for larger doors where scale is a consideration.
In double door conditions, for the passive leaf specify the HB 697 Strike Body with Edge Pull and add HB 665 Flush Pulls where a matching face plate is required. Various configurations are available as below.
System
Configuration Options:
HB 695 – Snib on inside, Emergency Release on Outside
HB 696 – Snib on inside, Nothing Outside
HB 698 – Snib on inside, Plain Flush Pull on Outside
HB 699 – Snib on Both Sides
HB 697* – HB690 Lock body only with no boltÂ
*HB697 - replaces strike on bi-parting doors. You will need to add Flush Pulls (HB660 or HB665) + Kits to match HB690 is using HB697
Flush Pull Material : Diecast Zinc and Brass
Lock Body Material : Diecast Zinc, Brass, 316 Stainless Steel
Backset : 55mm
Minimum door thickness : 38mmÂ
Flush pulls : 250mm x 36mm x 11mm
Internal Depth: 11mm
Click HERE for HB695 technical downloads.
Suitable for timber or aluminium doors.
Finishes Available:
Satin Chrome, Polished Chrome, Brushed Nickel, Polished Brass, Electro Black Ace, Electro Medium Bronze, Electro Dark Bronze, Appliance White, Dark Bronze, Black Chrome, Electro Flat White
For more information on the finishes click HERE.
Please note only the finishes listed on this page are available for purchase.
Standard HB 695 set includes :
 HB 690 Series Lock Body
 Two HB 665 Flush Pulls
 HB 604 Fixing Kits (one set for HB 696)
 Strike and Dust Box
 Two spindle lengths (please specify door thickness for doors over 50mm)
 Fasteners
This item is special order only, please allow 15-20 working days for dispatch.
