HALLIDAY + BAILLIE 170mm LENGTH SLIDING DOOR PRIVACY SET - HB690 SERIES

Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6
Product image 7
Product image 8
Product image 9
Product image 10

HALLIDAY + BAILLIE 170mm LENGTH SLIDING DOOR PRIVACY SET - HB690 SERIES

HALLIDAY + BAILLIE 170mm LENGTH SLIDING DOOR PRIVACY SET - HB690 SERIES

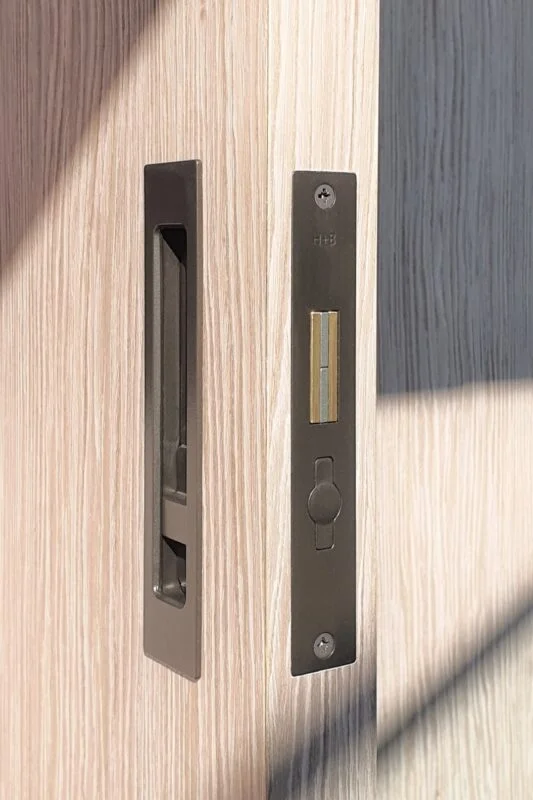

The iconic Halliday + Baillie HB690 sliding door privacy set features an integrated push button-activated edge pull for pocketed doors. The operable “snib” (a slide block that acts like a traditional thumb turn) slides upwards to engage the lock. The discrete emergency release indicator pull can be operated with a pen or other object to disengage the lock from the outside.

In double door conditions for the passive leaf specify the HB697 Strike Body w/Edge Pull and add HB 660 Flush Pulls where a matching face plate is required.

System Configuration Options:
HB 690 – Snib on inside, Emergency Release on Outside
HB 692 – Snib on inside, Plain Flush Pull on outside
HB 693 – Snib on inside, Nothing Outside
HB 694 – Snib on Both Sides
HB690/35 - Snib on inside, Emergency Release on outside (for 35mm thick doors)

Material: Diecast zinc with brass and 316 stainless steel

Backset : 55mm

Minimum door thickness : 38mm (for 35-37mm doors please use the HB690/35 set)

Flush pulls : 170mm x 36mm x 14mm

Internal Depth: 11mm

Click HERE for HB690 technical downloads.

Suitable for timber or aluminium doors with narrow stiles

*Please Order with timber fixing kit HERE for timber doors.

Finishes Available:
Satin Chrome, Polished Chrome, Brushed Nickel, Polished Brass, Electro Black Ace, Electro Medium Bronze, Electro Dark Bronze, Appliance White, Dark Bronze, Black Chrome, Electro Flat White

For more information on the finishes click HERE.
Please note only the finishes listed on this page are available for purchase.

Standard HB 690 set includes :
 HB 690 Series Lock Body
 Two HB 660 Flush Pulls
 HB 640 Fixing Kits (one set for HB 693)
 Strike and Dust Box
 Two spindle lengths (please specify door thickness for doors over 50mm)
 Fasteners

This item is special order only, please allow 15-20 working days for dispatch.

Select Finish
Select System
From $168.00

Original: $560.00

-70%
HALLIDAY + BAILLIE 170mm LENGTH SLIDING DOOR PRIVACY SET - HB690 SERIES—

$560.00

$168.00

Product Information

Shipping & Returns

Description

The iconic Halliday + Baillie HB690 sliding door privacy set features an integrated push button-activated edge pull for pocketed doors. The operable “snib” (a slide block that acts like a traditional thumb turn) slides upwards to engage the lock. The discrete emergency release indicator pull can be operated with a pen or other object to disengage the lock from the outside.

In double door conditions for the passive leaf specify the HB697 Strike Body w/Edge Pull and add HB 660 Flush Pulls where a matching face plate is required.

System Configuration Options:
HB 690 – Snib on inside, Emergency Release on Outside
HB 692 – Snib on inside, Plain Flush Pull on outside
HB 693 – Snib on inside, Nothing Outside
HB 694 – Snib on Both Sides
HB690/35 - Snib on inside, Emergency Release on outside (for 35mm thick doors)

Material: Diecast zinc with brass and 316 stainless steel

Backset : 55mm

Minimum door thickness : 38mm (for 35-37mm doors please use the HB690/35 set)

Flush pulls : 170mm x 36mm x 14mm

Internal Depth: 11mm

Click HERE for HB690 technical downloads.

Suitable for timber or aluminium doors with narrow stiles

*Please Order with timber fixing kit HERE for timber doors.

Finishes Available:
Satin Chrome, Polished Chrome, Brushed Nickel, Polished Brass, Electro Black Ace, Electro Medium Bronze, Electro Dark Bronze, Appliance White, Dark Bronze, Black Chrome, Electro Flat White

For more information on the finishes click HERE.
Please note only the finishes listed on this page are available for purchase.

Standard HB 690 set includes :
 HB 690 Series Lock Body
 Two HB 660 Flush Pulls
 HB 640 Fixing Kits (one set for HB 693)
 Strike and Dust Box
 Two spindle lengths (please specify door thickness for doors over 50mm)
 Fasteners

This item is special order only, please allow 15-20 working days for dispatch.
