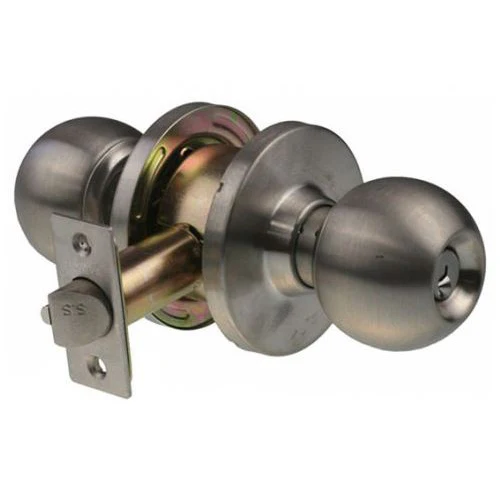

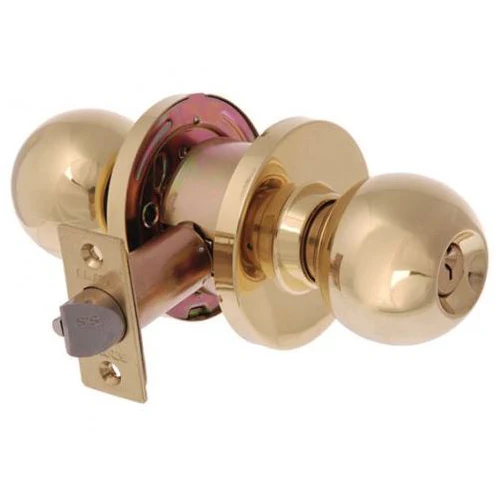

BRAVA Metro EA3000 series commercial grade 70 mm backset glass door knobset.

firerated-icon Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets.

Glass door function

Outside key locks and unlocks both knobs.
Inside key locks and unlocks both knobs.

Additional info

Cylindrical fixing.
Silca LW5 profile 6 pin cylinders.
Incorporates the popular PD 8221 barrels.
Compatible with most restricted keying systems.
Boxed and colour coded.
2 keys supplied.
Fire rated.
Finished in satin stainless steel, polished stainless steel, polished brass or antique copper.

Door thickness	35-45mm
Backset	70mm
max. Lever / knob projection distance m

70mm

BRAVA EA SERIES COMMERCIAL GLASS DOOR (DOUBLE CYLINDER) KNOB SET
