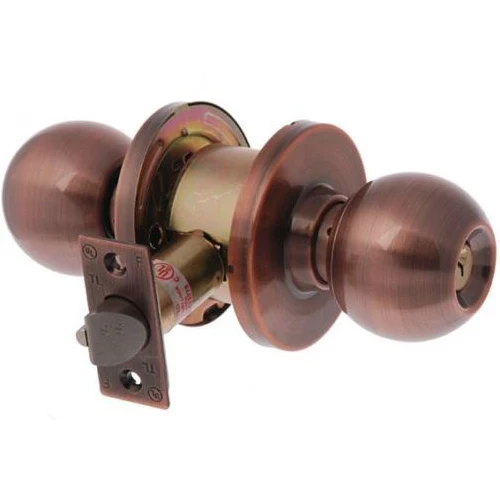

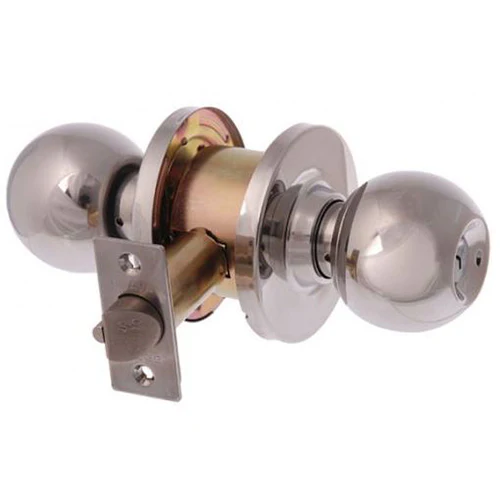

BRAVA EA SERIES COMMERCIAL GLASS DOOR (DOUBLE CYLINDER) KNOB SET
BRAVA Metro EA3000 series commercial grade 70 mm backset glass door knobset.
Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets.
Glass door function
- Outside key locks and unlocks both knobs.
- Inside key locks and unlocks both knobs.
Additional info
- Cylindrical fixing.
- Silca LW5 profile 6 pin cylinders.
- Incorporates the popular PD 8221 barrels.
- Compatible with most restricted keying systems.
- Boxed and colour coded.
- 2 keys supplied.
- Fire rated.
- Finished in satin stainless steel, polished stainless steel, polished brass or antique copper.
| Door thickness | 35-45mm |
| Backset | 70mm |
|
max. Lever / knob projection distance may not include turnsnib |
69.5mm |
| Strike | 70mm x 27mm x 1.2mm |
| Latch | 70mm backset |
| Latch face plate | 57mm x 25mm |
| Cylinder | LW5 profile |
| Door handing | Non-handed knobs/levers |
| Rose | 75mm |
Product Information
