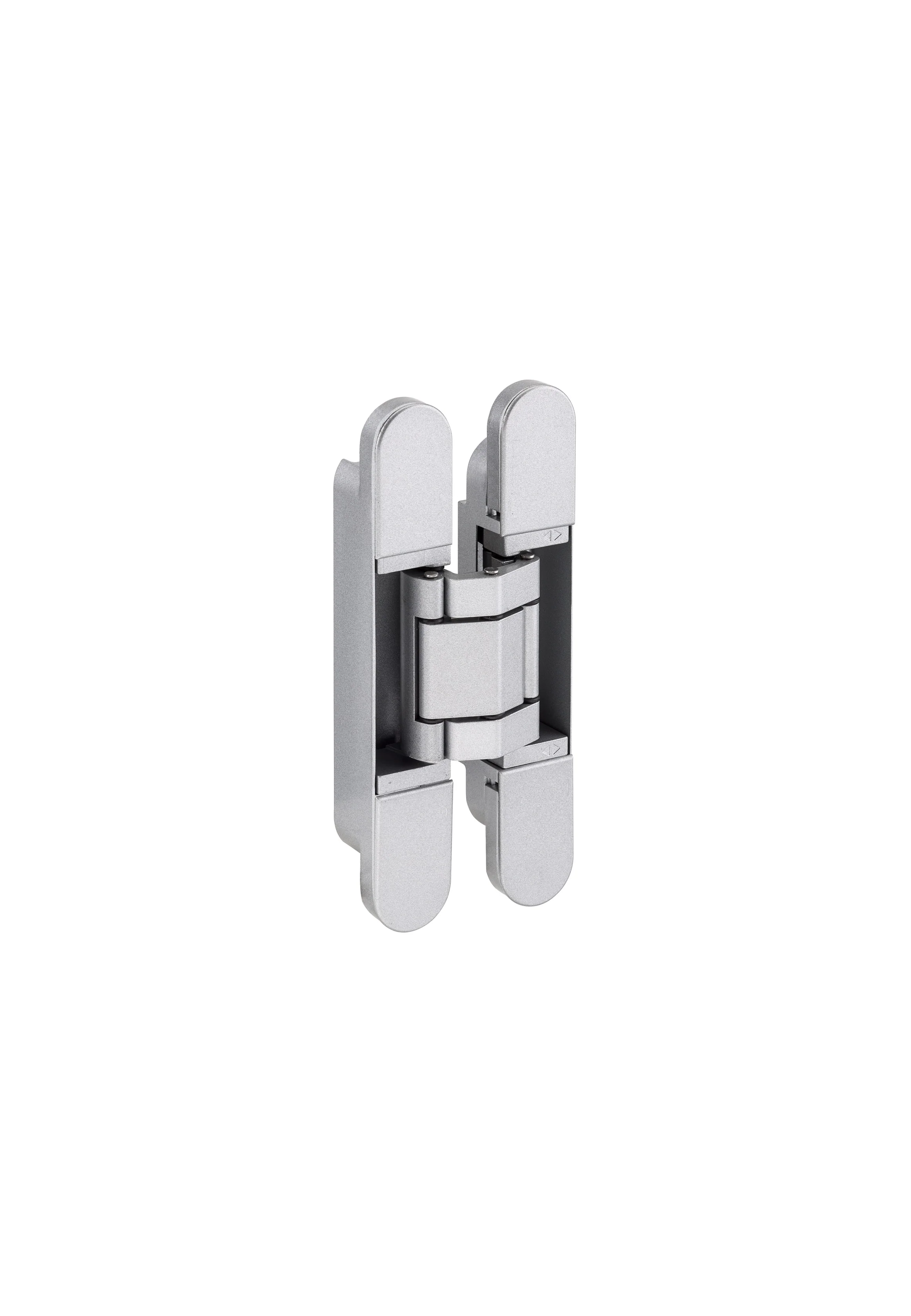

NEW 3D ADJUSTABLE CONCEALED HINGES
Great new invisible concealed door hinges in two different sizes for heavy duty doors. Other specifications include;

• Can be used on interior or exterior doors.
• These hinges allow three-dimensional adjustment (depth, vertical and horizontal). This means the door can be aligned with the wall to perfection where there is frameless architecture.
• Maximum opening angle of 180 degrees.
• Hinge reversible for right/left doors.
• Comes with Self-lubricating anti-friction washers.
• Fire proof and tested for 200,000 cycles.

Finishes available in;

• Stainless Steel
• Matt Black
• White.

5970 – 25mm width x 152mm height, Minimum Door Thickness; 36mm. 2 x hinges can take a 50kg door, 3 x hinges can take a 60kg door.

5972 – 28mm width x 177mm height, Minimum Door Thickness; 40mm. 2 x hinges can take a 80kg door, 3 x hinges can take a 90kg door.
