NEPTUNE 12VDC 5Amp POWER SUPPLY WITH BATTERY CHARGING - BLACK LOCKABLE METAL ENCLOSURE
Description

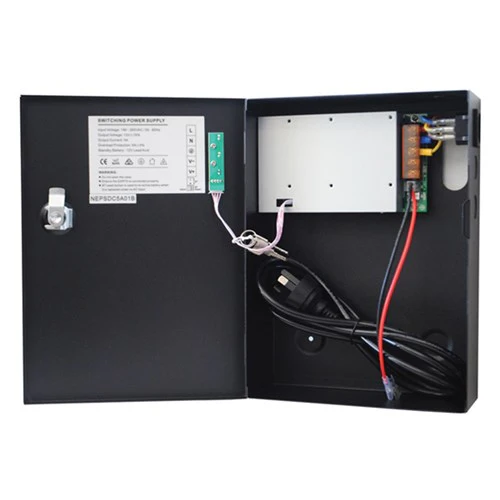

The Neptune 5AMP Power Supply offers exceptional value for money. Ideal for smaller installation applications, the Neptune power supply has a lockable enclosure that is small and compact but has enough room to house a 12V 7AH battery to provide backup when required.
Battery not included.
The Neptune Power Supply has been fully tested to meet all Australian standards so it is a must have for any electronic equipment installer.
Documents
|
Specification |
||
| INPUT | Voltage (AC mode) | 190 - 265VAC |
| Frequency | 50 or 60Hz | |
| OUTPUT | Voltage (AC mode) | 13.8V ±2% |
| Voltage (BT mode) | Same as battery voltage | |
| Rated Current | 5A | |
| Rated Power | 80W (with charging) | |
| BATTERY | Battery Type | 12V lead acid (not included) |
| Charge Voltage | 13.8V ±2% | |
| Charge Current | 800mA | |
| PROTECTION | Input Fuse | 2A / 250VAC |
| Overload | 6A ±5% | |
| Over Voltage | 16V ±5% | |
| Deep Discharge | 10V ±2% | |
| Short Circuit | Hiccup mode | |
| TEMPERATURE | Working: -20 ~ 50°C | Storage: -30 ~ 80°C |
| HUMIDITY | Working: 20 ~ 80%RH | Storage: 10 ~ 90%RH |
| DIMENSIONS | 265 x 195 x 75 mm |
| LED status | On | Off | Flickering |
| RED | Input OK | Input Failure | ******* |
| GREEN | Output OK | Output Failure | ******* |
| YELLOW | Battery Fully Charged | Battery Discharging | Battery Charging |
Note: All LED indicators are flickering when a short circuit or overload occurs.
