Specification

Material:

• #304 Stainless Steel - 32mmØ

Finish:

• Satin Stainless Steel

Mounting:

• Concealed Fix - 78mmØ Mount

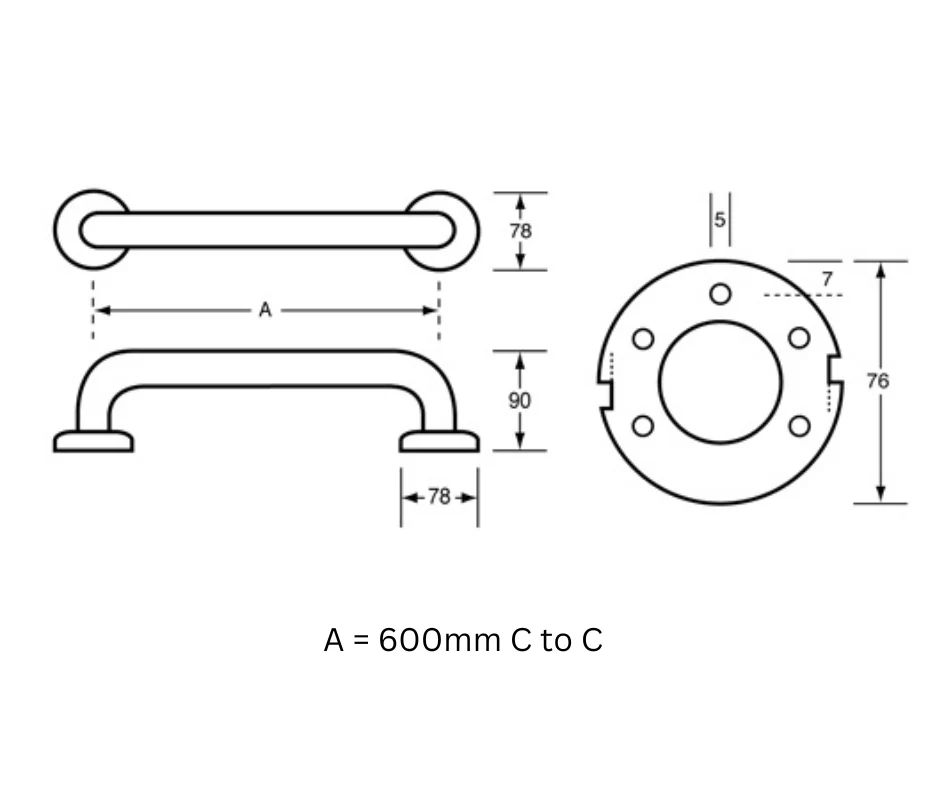

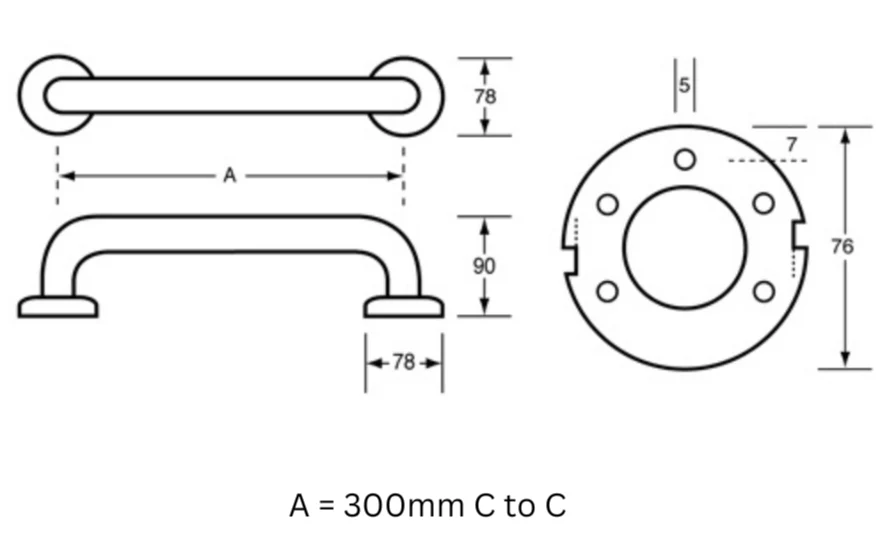

Please Note: A Indicated On The Line Drawing Refers To The Length, Please See Below Specify:

Dimensions:

• ML327 - 300mm C to C
• ML330 - 450mm C to C
• ML331 - 600mm C to C

Note
*This unit is accessible compliant when installed in accordance with AS1428.1. guidelines.

*It is the responsibility of the installer to ensure that the surface/substrate that the unit is installed upon and the fixings used are suitable to withstand the weight bearing loads of the unit and if required as per AS1428 / Australian building code regulations.

*The materials and construction of this grab rail meet AS1428.1 force requirements to be able to withstand a force of 1100Nm applied at any position and in any direction without deformation.
