Description

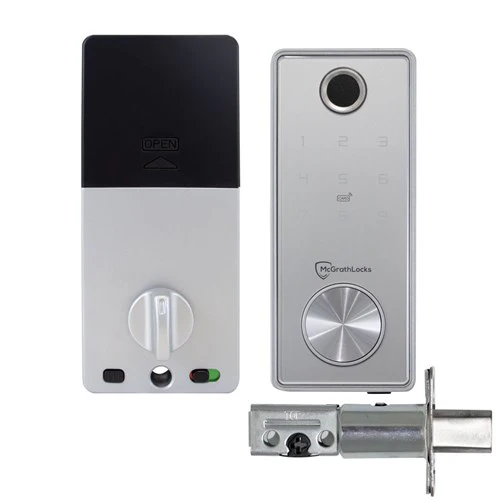

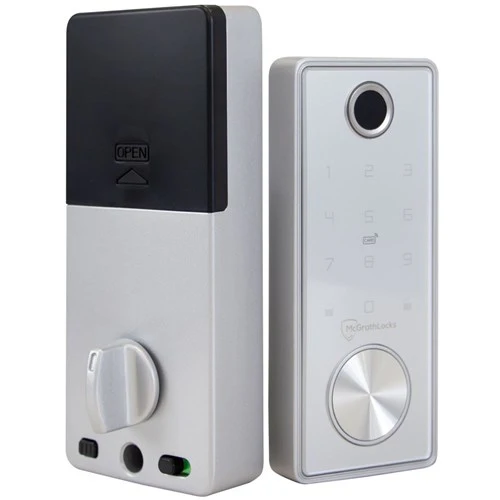

The X3 by McGrath Locks is a stylish deadbolt with many features making it a great addition to the home, office or business. This 5 in 1 digital door lock provides a versatile and convenient method of entry that allows you to easily manage who has access to your property.

Utilising the powerful McGrath Locks app, lock and user settings are easily configured and managed. Access can be provided to family and visitors alike through pin code, RFID credential, eKeys managed via BLE and mechanical key override. By adding a McGrath Locks Wi-Fi gateway you can remotely unlock the X3 from anywhere in the world using the McGrath Locks app.

The X3 comes with an adjustable 60/70 mm deadbolt. Please use a roller catch when installing to ensure accurate door alignment (sold separately).

• Lock functions and access easily managed via McGrath Locks app.
• Enrol Pin Codes, RFID credentials, Fingerprints and send eKeys to your family and visitors.
• Passage Mode can be used to leave your door open when required.
• Anti peep code function stops unathorised people seeing the correct code inputted.
• Incorrect attempt lockout.
• Reset button can be disabled in App for additional security.
• Audit trail within App to see who accessed your door and when.
• Low battery alert (within App and audible at the lock).
• 4 x AA Alkaline Batteries (not included).
• Mechanical key override and USB-C emergency opening.
• Field changeable left and right door handing.
• Suits doors thickness 35-50 mm.
• Outside lock case dimensions 140 (H) x 60 (W) x 16 mm (D).
• Inside lock case dimensions 155 (H) x 68 (W) x 28 mm (D).
• Finished in Black or Silver.



Technical Specifications

Brand: McGrath Locks

AS1428.1 Compliant Lever (AS1428.1CO): No

Finish: Silver

IP Rating: IP65

Fire Rated: No

Biometric Fingerprint Access: Yes

Suits: Standard Stile Doors

Type Of Latch: Deadbolt

Assembly Form: With Deadbolt



Documents

• MLX3 Datasheet_456.9 KB
• MLX3 User Guide and Manual_5.1 MB
