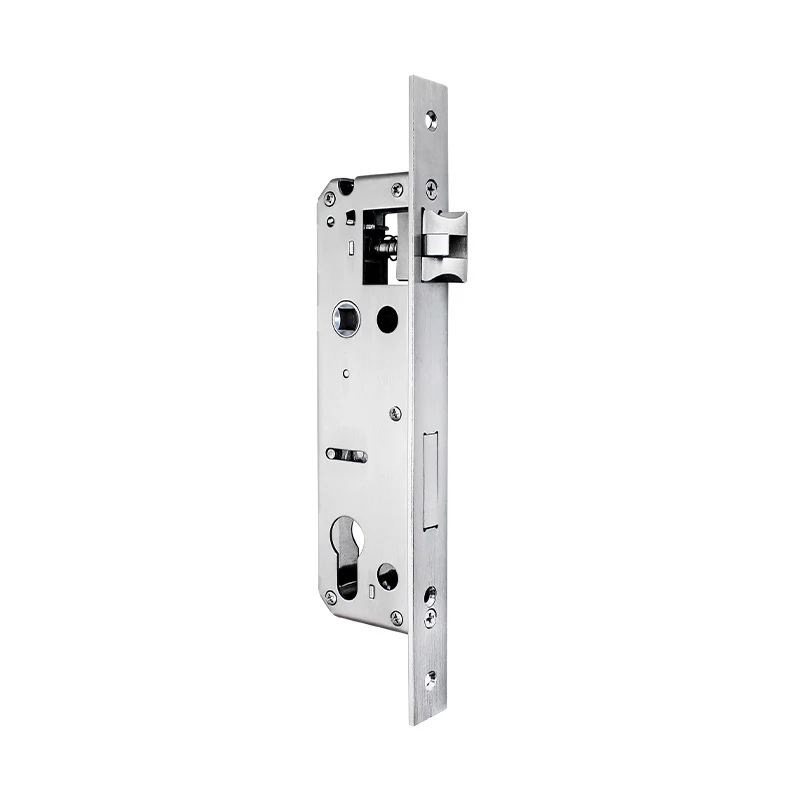

MCGRATH EURO MORTICE LOCKS
The McGrath Locks Euro Mortice lock for swing style doors is compatible with ML-A210, ML-A231, ML-NX5 Digital locks. Ideal as an alternative to the standard bodies supplied when installing on timber doors with existing fittings. As well as locking on the latch, you can manually lift the handle up to throw the deadbolt.
- Designed for Business/Residential
- Meets ANSI / BHMA standards for more than 500,000 cycle tests.
- Pass BHMA Level 2 and Level 3 All stainless steel body and latching tongues.
- Using standard European style gourd lock cylinders.
- Dead latching with durable SS304 stainless steel deadbolt.
- Lift up for manual use of deadbolt.
- ONLY DESIGNED FOR MCGRATH DIGITAL LOCKSĀ
Specifications
- Reversible latch
- Back set ā 28mm, 30mm, 35mm, 45mm, 50mm, 60mm, 70mm
- Lock centres ā 85mm
- Faceplate size, 240mm x 22mm x 3mm
- Made from 304 stainless steel
The backset of the lock you select will be determined by how far from the edge of the door your handles are positioned.
Please noteĀ these locks have a pitch (centre of spindle point to centre of cylinder) of 85mm as shown in the images.
