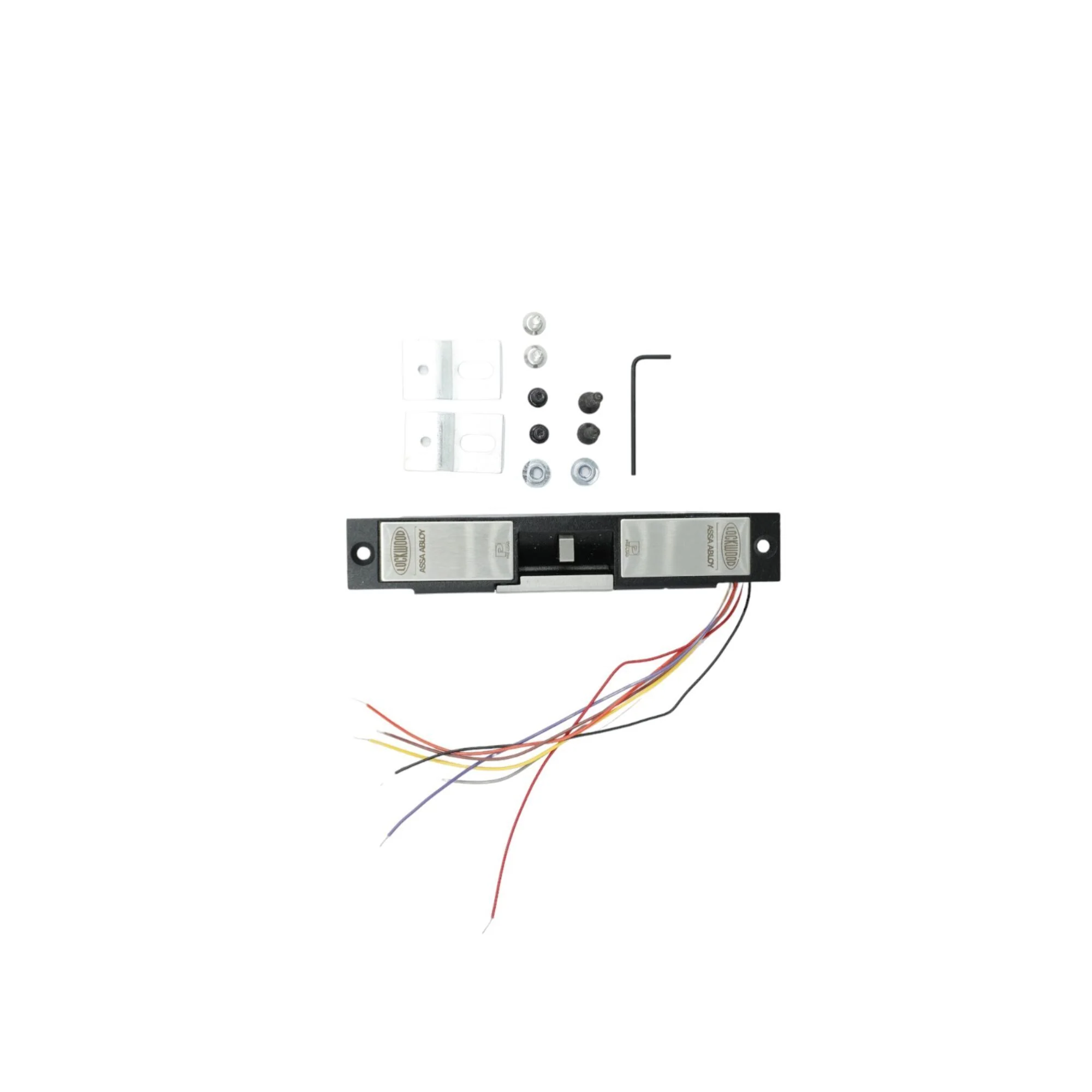

Product image 2

LOCKWOOD PADDE ES9000 PRE-LOAD ELECTRIC STRIKE - NO LIP

LOCKWOOD PADDE ES9000 PRE-LOAD ELECTRIC STRIKE - NO LIP

Lockwood Padde Series ES9000 Pre-Load Electric strike NO LIP

The ES9000 electric strike is a high security product manufactured from solid stainless steel and designed to be used on special application doors that require access control.

4 hour fire rating. And Australian Government listed.

The ES9000 is designed, developed and manufactured in Melbourne.

SCEC-Approved-Product

Approved for Security Level 3

ES9000 - Pre-load (side pressure) testing

The ES9000 overcomes the real life issue of side pressure, commonly known as pre-load, easily opening with up to 25kg of pre-load applied to the strike. Pre-load is commonly caused by pulling on a door before it unlocks, by the weight of warped or drooping doors or by differential air pressure created by heating and cooling systems.

Standard features include multi voltage 10 - 30Vdc and field changeable settings from fail safe to fail secure.

Built to last, this is a premium locking solution that has been tested in excess of 2 million cycles and boasts unique features like no other available on the market today.

Key Features

  • Suitable for doors with full length blocker.
  • Operates under pre-load up to 25kg.
  • 4hrs fire rating when used with an approved door set.
  • Suitable for use on hinged doors with fire or security requirements.
  • Field selectable fail safe / fail secure.
  • Equipped with a silencer pad on the keeper which significantly reduces noise when the strike is operated.
  • Fully monitored - strike locked and door closed status.
  • Solenoid monitor - 1 amp NO/NC microswitch.
  • Door/latch monitor - 1 amp NO/NC microswitch.
  • Stainless steel striker.
  • Suitable for 15 mm latch and 3 mm door gap.
  • 3 hardened locking pins.
  • Solenoid can be continuously powered.
  • Self adhesive installation template.
  • Multi Voltage 12Vdc - 24Vdc.
  • 250mA @12Vdc - 130mA @24Vdc.
  • 1300kg static strength rating.
  • 1,200,000 cycles endurance rating @ 25kg pre-load.
  • Australian designed and made Approvals / Certifications C-Tick & CE compliant.
  • Solenoid rated for continuous use.
  • Built in protection diode.
  • Mounting tabs as supplied standard.
  • Weather resistant (IP54).



Technical Specifications

·         Brand - PADDE

·         Current - 250 mA @ 12 Vdc to 130 mA @ 24 Vdc

·         Drilled for Lip Extension - No

·         Field Selectable Fail Safe/Fail Secure - Yes

·         Holding Strength in kg-  1300

·         IP Rating - IP54

·         Operates Under Pre-load up to 25 kg

·         SCEC Endorsed - Yes

·         Working Voltage - 12 Vdc to 24 Vdc

·         Fire Rated - Yes

·         Locking Mode-  Fail Secure/Fail Safe

·         Monitoring - Monitored Strike and Door Status



Applications

  • High traffic areas
  • Doors subjected to side load (pre load)
  • Fire rated door sets
  • Open in/open out doors
  • Suitable for use with all access control systems



Standards and Compliance

  • S3 (Security) Australian Lock Standard (AS4145.2.1993)
  • D3 (Durability) Australian Lock Standard (AS4145.2.1993)
  • Successfully fire rated up to 4hrs on fire door assemblies in accordance with AS1905.1. 2005 (Part 1: Fire resistant door sets)
  • CE Approved
  • C-Tick Certified
  • IP 54 Rating
  • SCEC Approved for Security Level 3
  • Dimensions: As pictured

Voltage
10 - 30Vdc

Current
250mA @12Vdc - 130mA @24Vdc

Solenoids
Solenoid rated for continuous use

Electrical protection
Polarity and back EMF protected

Monitoring
Solenoid Monitor - 1 amp NO/NC microswitch
Door / Latch Monitor - 1 amp NO/NC microswitch

Holding force
1300kg static strength rating

Endurance
1,200,000 cycles endurance rating @ 25kg pre-load
2,500,000 cycles general durability without pre-load conditions

Latching
Suitable for 15mm latch with 3mm door gap

Environment
Operational temperature range - 20C to +60C

Body
Solid Stainless Steel Construction

Keeper
Stainless Steel

Specification Statement
The electric strike should be fully monitored and have independent door / latch and solenoid monitor switches. Holding force for the strike should be not less than 1300kg.

Where Power to Lock and Power to Open functions may be required in the same building, a single electric strike should be interchangeable from either fail safe or fail secure from the rear of the strike.

The electric strike should not consume current greater than 250mA @ 12Vdc and have a solenoid rated for continuous use. A fire rating not less than 4 hours is required where applicable. The strike must be capable of operating with up to 25kg of pre-load pressure applied to the keeper, be tested to 2.5 million operations and carry a minimum warranty of 5 years.
