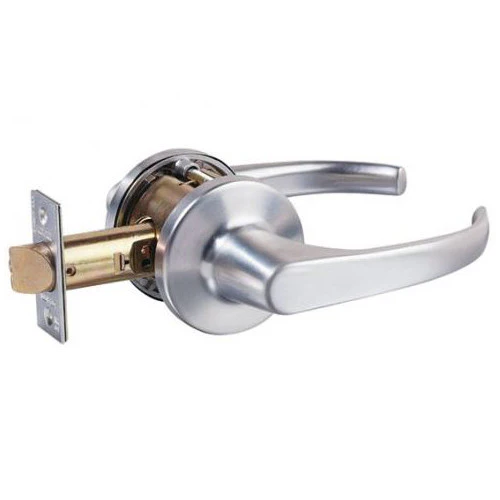

Lockwood 931 series passage leverset. Commercial grade.

Fire rated to 2 hours.

Passage function

• Both levers free at all times.

Additional info

• Commercial grade passage leverset.
• Both levers always free.
• Levers and roses made of high purity zinc alloy.
• Baffle (shroud) prevents over-tightening when installing.
• 70 mm backset standard.
• 60mm and 127mm latches available separately.
• Suitable for door thickness 32 mm - 45 mm.
• Brass latch bolt with 13 mm projection.
• Fire rated to 2 hours.
• Finished in satin chrome.

Door thickness	32-45mm
Backset	70mm
max. Lever / knob projection distance does not include turnsnib	51mm
Strike	70mm x 28.5mm x 1.2mm
Latch	70mm backset
Latch face plate	57mm x 25mm
Door handing	field adjustable
Rose	65mm
