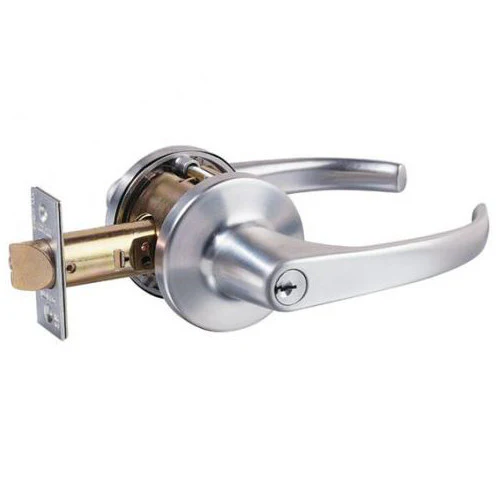

Lockwood 934 series glass door leverset. Commercial grade.

Fire rated to 2 hours.

Glass door function

• Outside key locks and unlocks both levers.
• Inside key locks and unlocks both levers.

Additional info

• Commercial grade glass door leverset.
• Key operated from both sides.
• Both sides opened by lever when unlocked.
• Key locks and unlocks both levers.
• Levers and roses made of high purity zinc alloy.
• Baffle (shroud) prevents over-tightening when installing.
• 70mm backset standard.
• 60mm and 127mm latches available separately.
• Suitable for door thickness 35mm - 41mm.
• Brass latch bolt with 13mm projection.
• Fire rated to 2 hours.
• Supplied with one-way screws for extra security.
• Finished in satin chrome.



Door thickness	32-45mm
Backset	70mm
max. Lever / knob projection distance does not include turnsnib	51mm
Strike	70mm x 28.5mm x 1.2mm
Latch	70mm backset
Latch face plate	57mm x 25mm
Door handing	field adjustable
Rose	65mm
