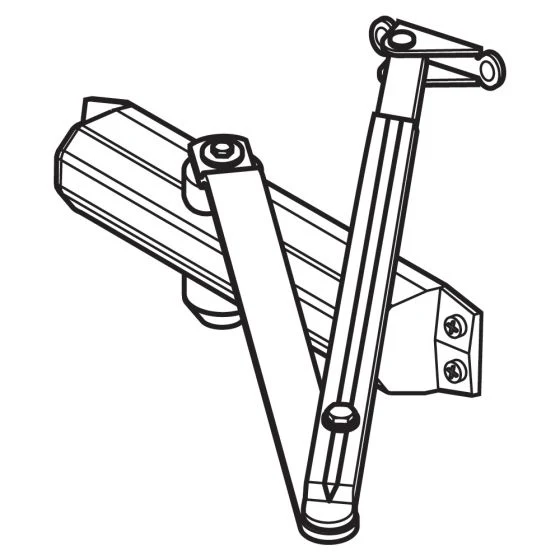

The Lockwood 2024 is a rack and pinion, economy door closer, particularly quick and easy to install on most applications.

Multi position mounting template enables adjustment on site to meet most conditions.

Non-handed and suitable for doors up to 1100 mm in width.

All products include parallel arm bracket; multi strength mounting (one model covers size 2, 3 and 4) ; parallel arm size 2 and 3.

• Adjustable backcheck.
• Adjustable latching and closing speeds.
• Includes parallel arm bracket (for push side installation).
• Fire rated to 4 hours.
• Multi position mounting template.
• Suitable for doors up to 1100mm wide.
• Adjustable power from size 2 to 4.
• The power is altered by adjusting the position of the body on the mounting template.
• Other versions are also available.
• Finished in Silver.



Power Selection: The power of the door closer is altered by adjusting the position of the door closer body on the mounting template.

Standards and Compliance: The Lockwood 2024 series closer has been successfully tested up to four hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS1905.1:2005, Part: Fire Resistant Door sets.

Note: Hold open option is not approved on any fire door.

Ordering: Please note this is a non-stocked item. Allow up to 5 days to dispatch this Lockwood product.
