IVER BRUNSWICK LEVER OVAL BACKPLATE - KIT

IVER BRUNSWICK LEVER OVAL BACKPLATE - KIT

The Brunswick lever is an impactful addition to any interior, the diamond cut cross knurling across the bar handle serves as a textural point of difference, sure to command attention.

The Brunswick lever can be purchased as a passage, privacy or entrance kit, which includes all components required for your door to function.

As part of the Brunswick whole-of-home collection, matching pull handles, cabinetware and a privacy turn are also available.

All Brunswick levers and backplates have been successfully fire rated to 2 hours to meet the requirements of the Australian Standard (AS1530.4:2014). For more details contact a member of our sales team.

This product comes with face fix wood screws and tie bolts, latches are sold separately. Euro and privacy punch outs are 85mm CTC. Half sets in this range are available fixed or operable. Please add LH or RH to the end of any code when ordering.


Specifications

Height: 240mm
Width: 40mm
Length: 120mm
Projection: 57mm
Centre to centre: 205mm

What's in the box

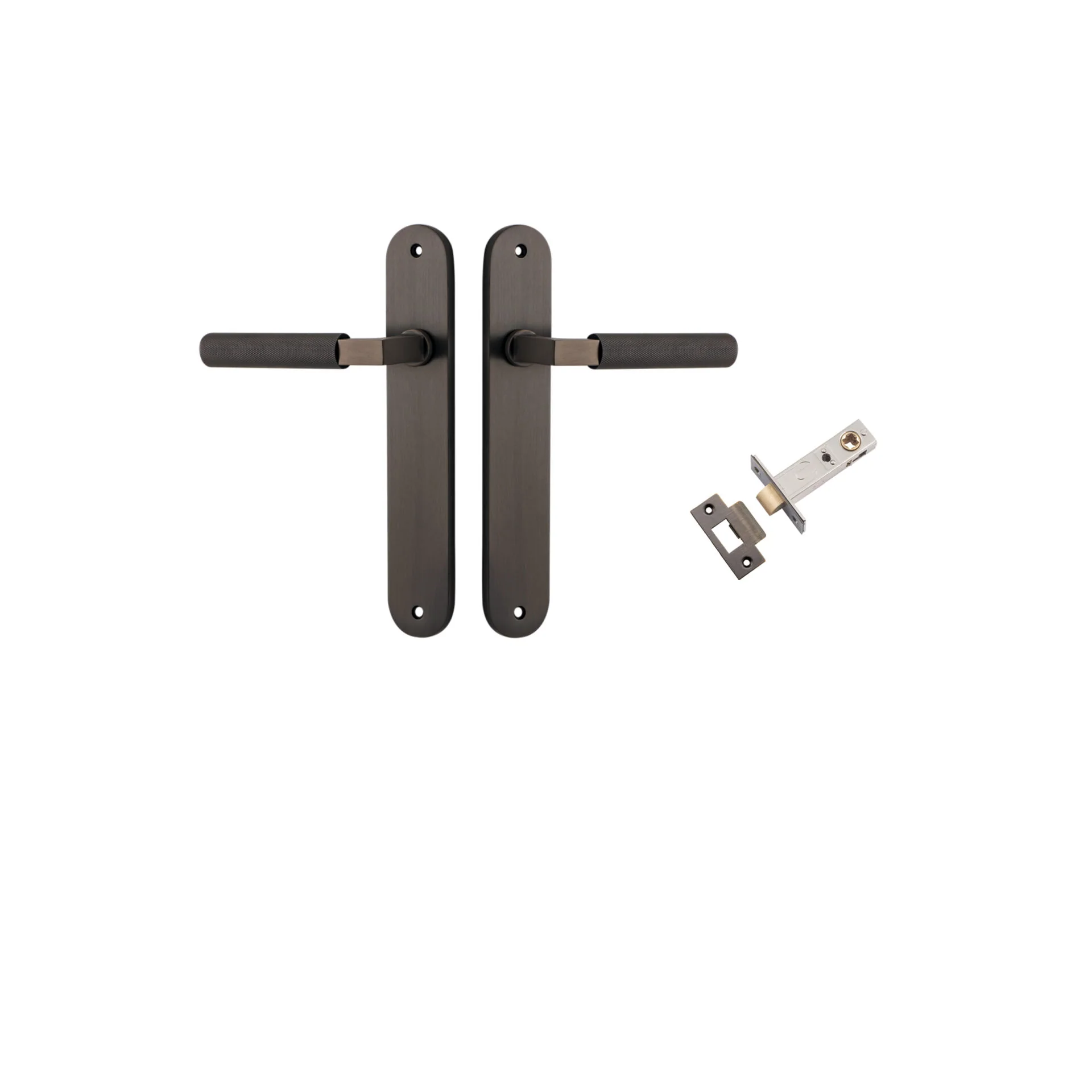

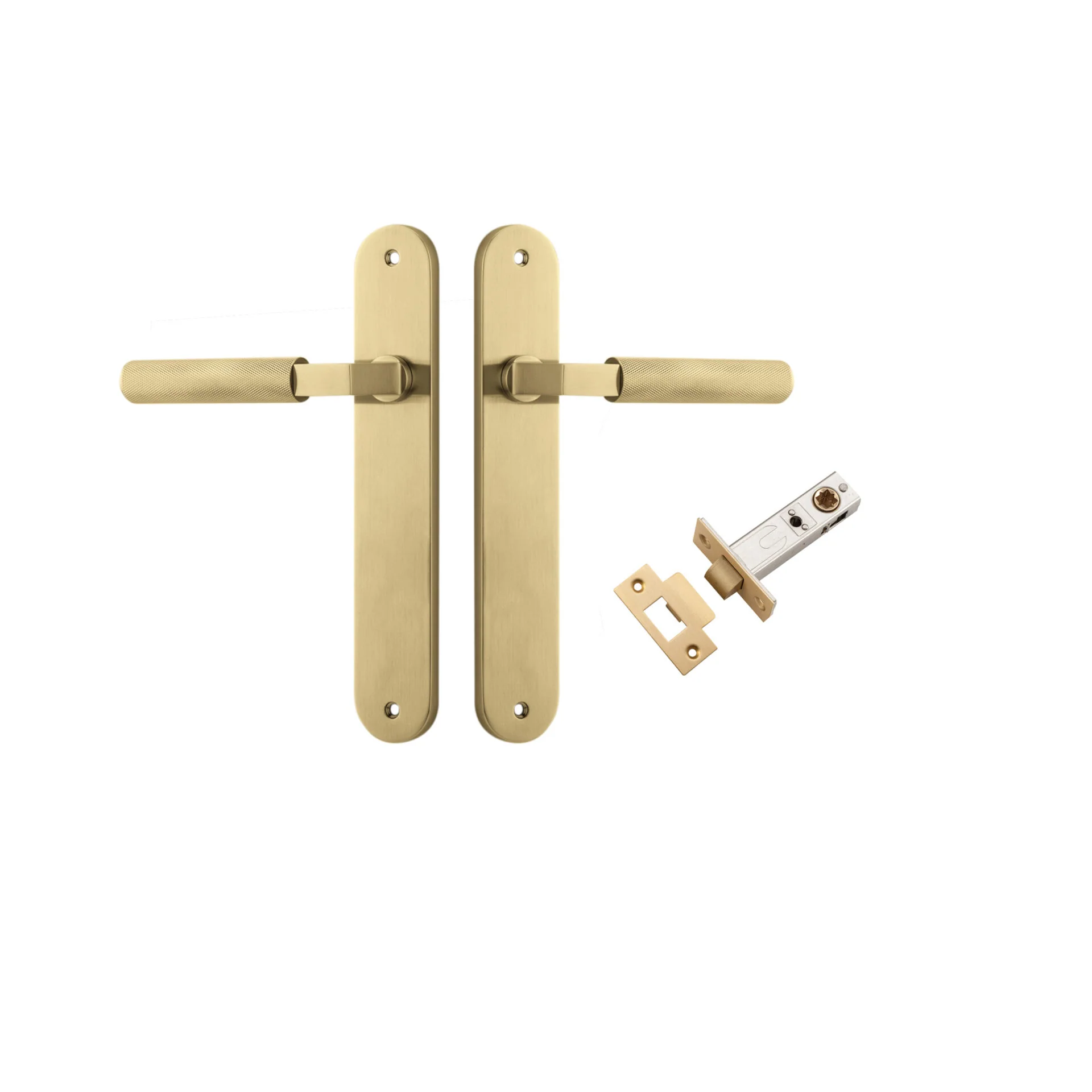

Passage Kit:

  • 2 x BrunswickĀ on Oval Backplate
  • 1 x Tube Latch Split Cam Backset 60mm
  • 1 x Face Plate
  • 1 x Striker Plate
  • 15 x Screws
  • 1 x Standard Spindle
  • 2 x Sprung Spindles
  • 2 x Tie Bolts
  • 1 x Dust Box
  • 1 x Drill Template
  • 1 x Instruction Manual

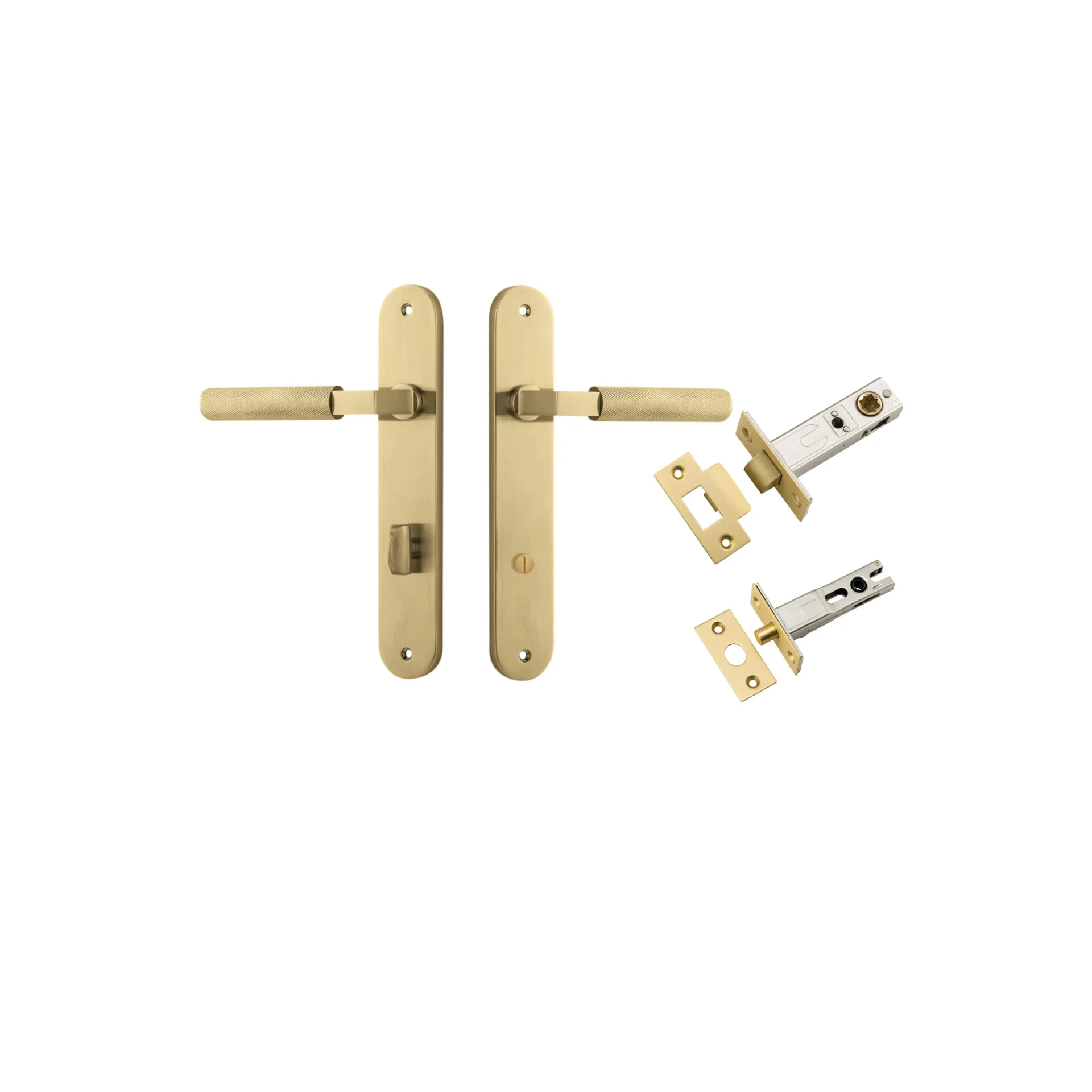

Privacy Kit:

  • 2 x BrunswickĀ on OvalĀ Backplate
  • 1 x Tube Latch Split Cam Backset 60mm
  • 1 x Face Plate
  • 1 x Striker Plate
  • 1 x Privacy Bolt Round Backset 60mm
  • 20 x Screws
  • 2 x Tie Bolts
  • 1 x Standard Spindle
  • 2 x Sprung Spindles
  • 1 x Privacy Adaptor
  • 2 x Dust Boxes
  • 1 x Drill Template
  • 1 x Instruction Manual

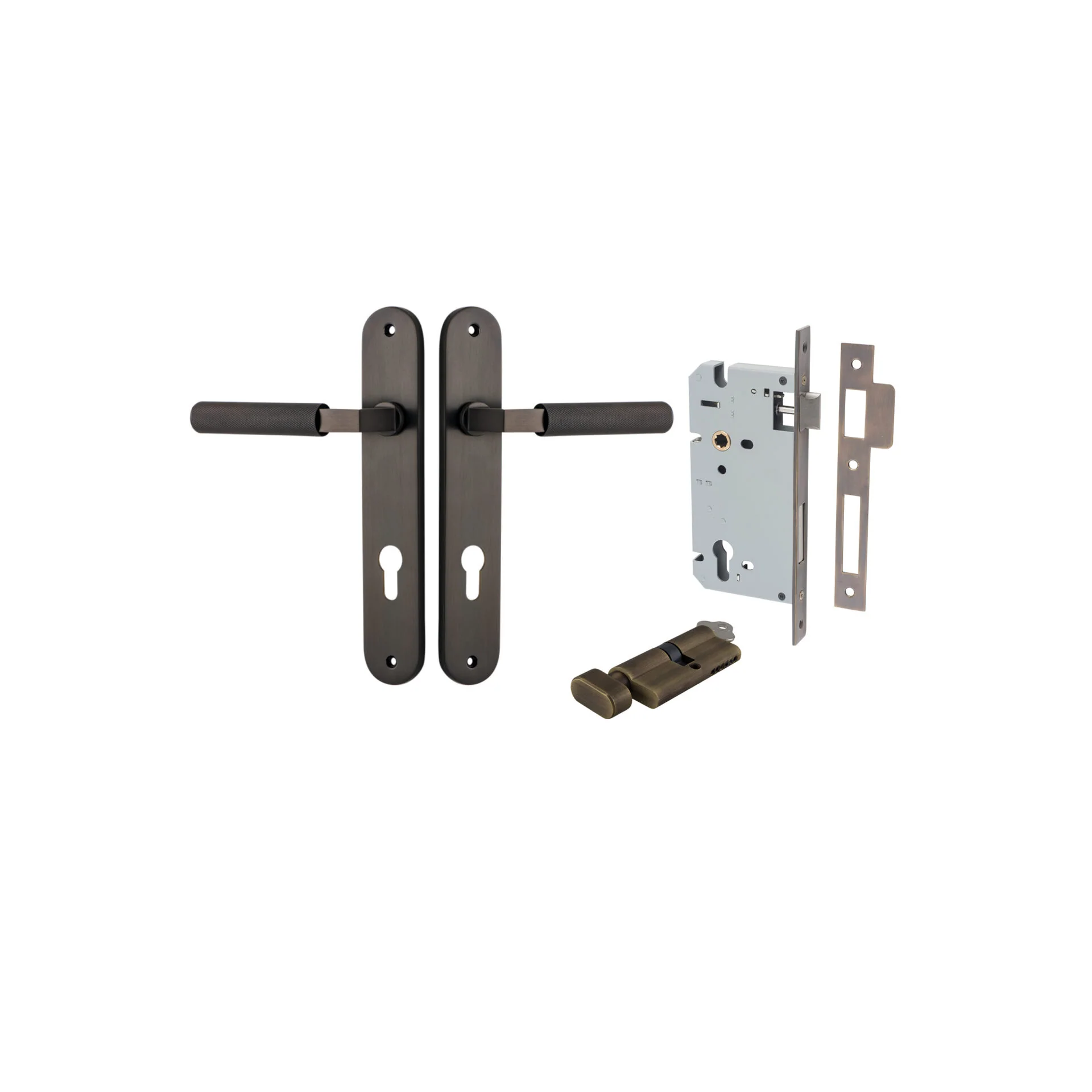

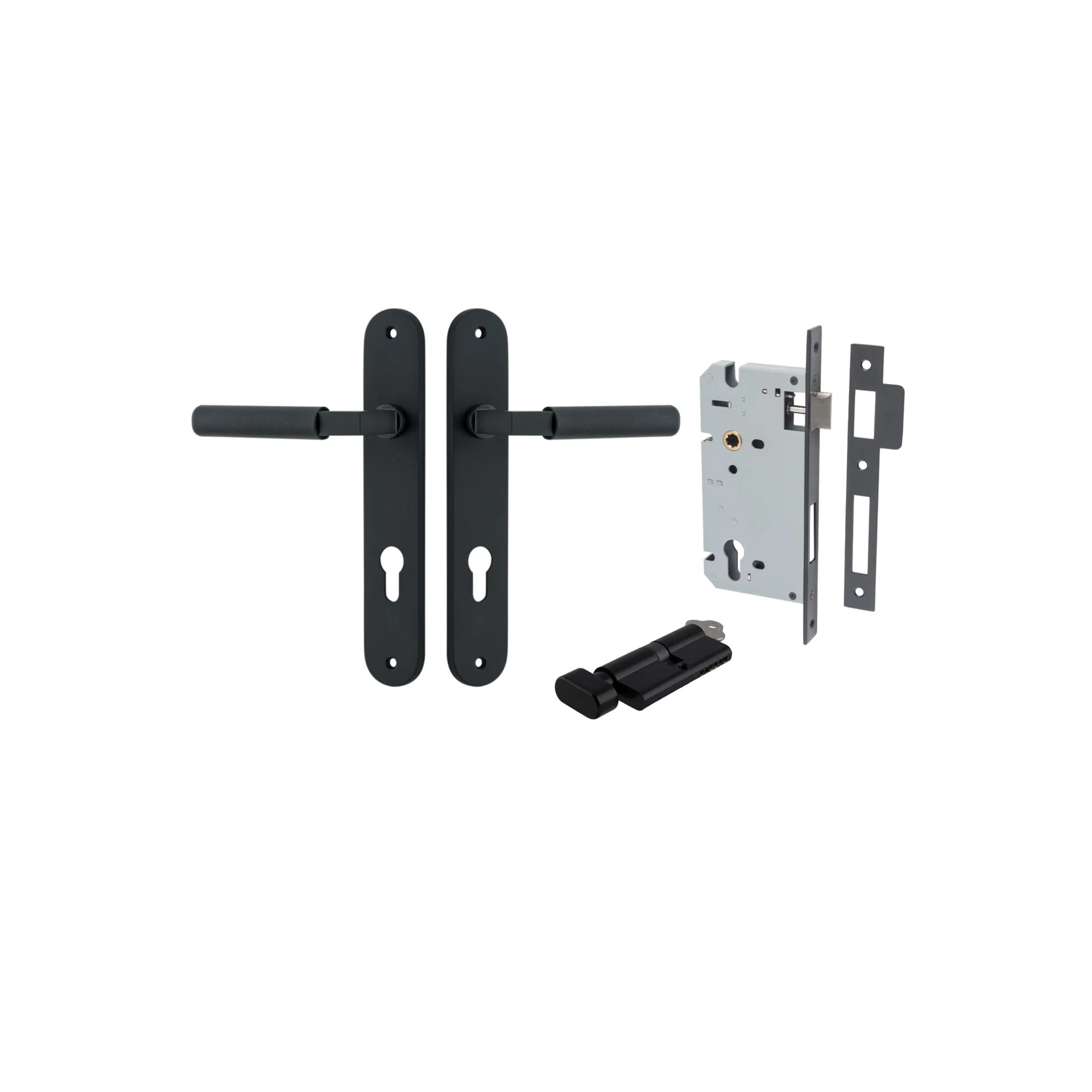

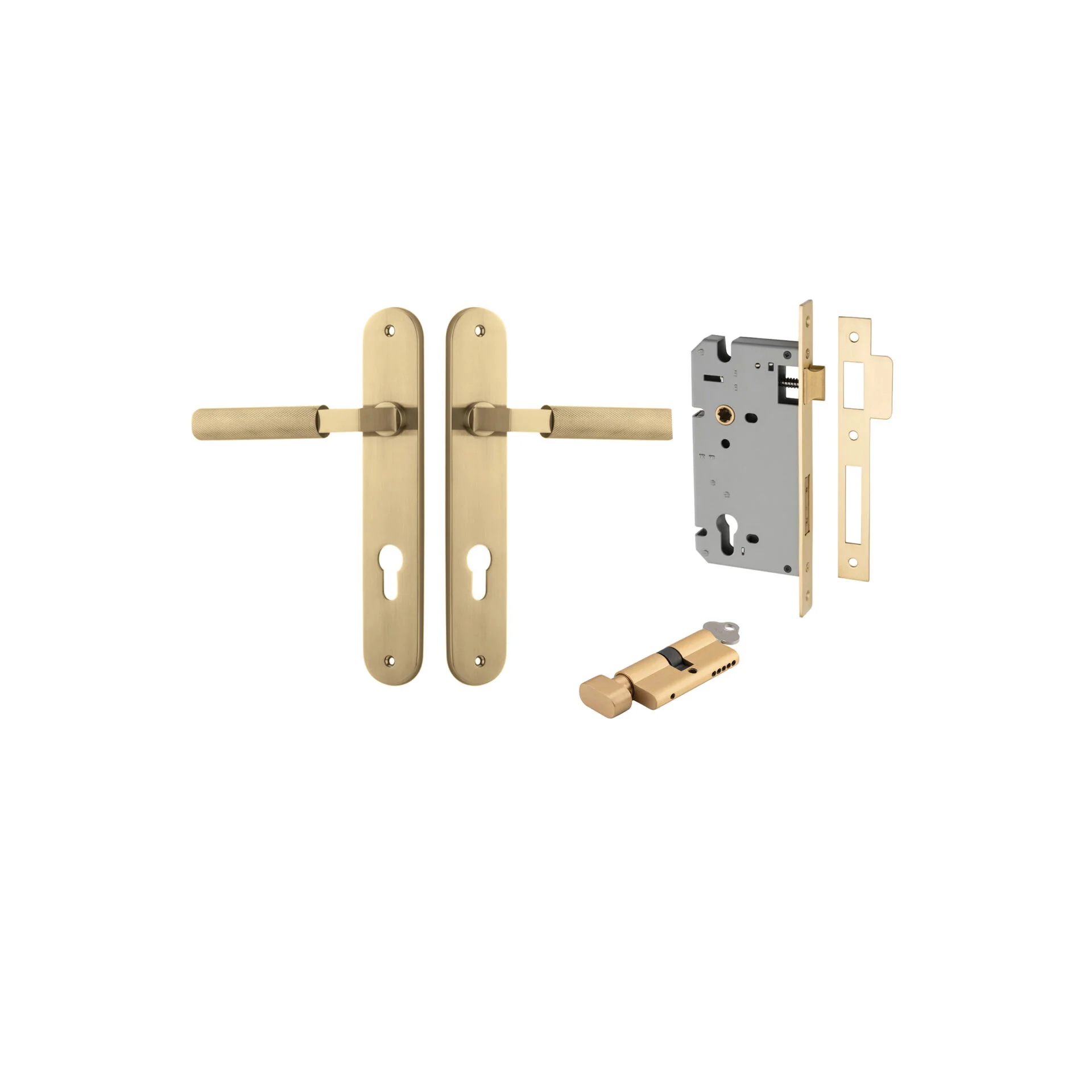

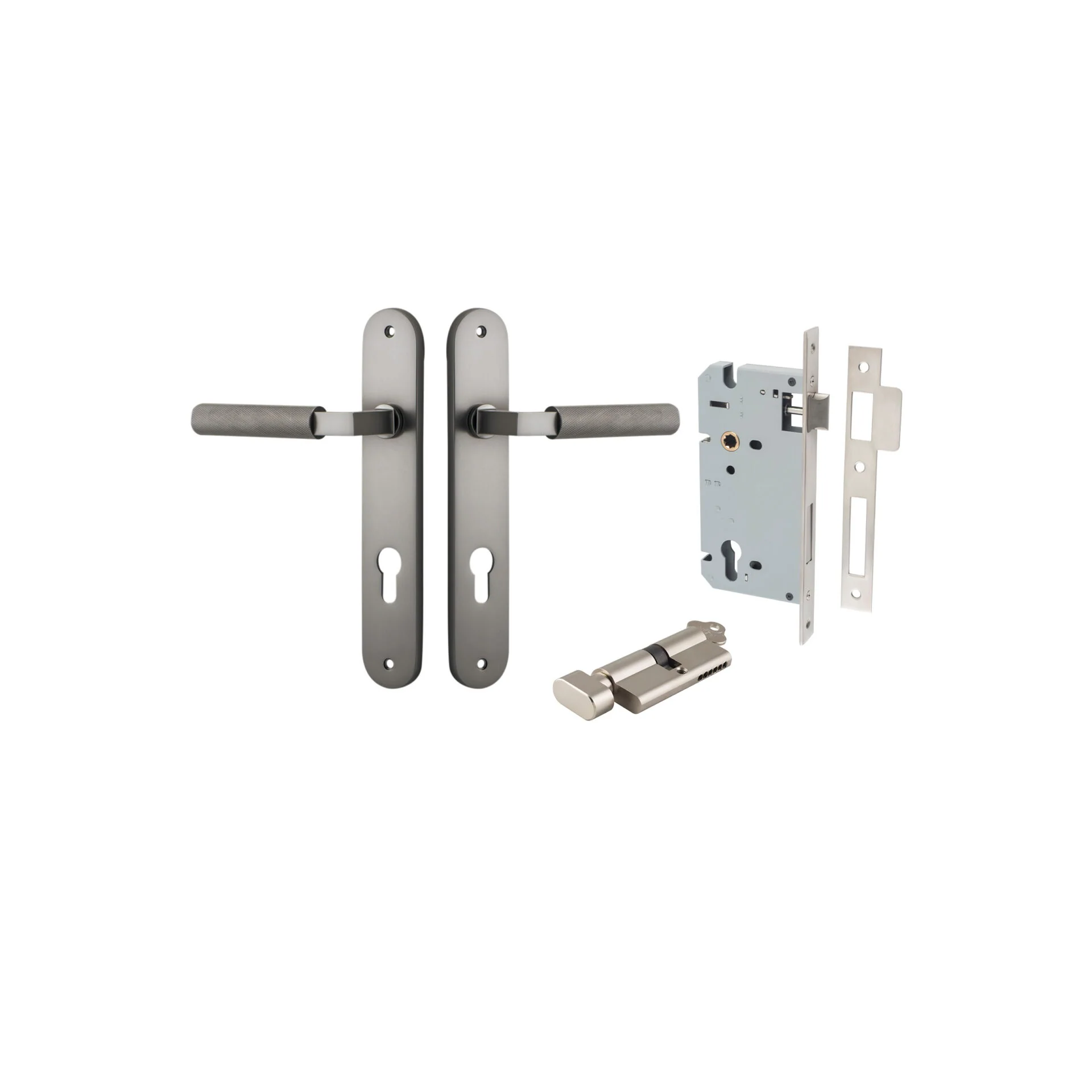

Entrance Kit (Key/Thumb):

  • 2 xĀ BrunswickĀ on OvalĀ Backplate
  • 1 x Euro Mortice Lock CTC85mm Backset 60mm
  • 1 x Face Plate
  • 1 x Striker Plate
  • 1 x Euro Cylinder Key / Thumb
  • 2 x Keys
  • 1 x Standard Spindle
  • 2 x Sprung Spindles
  • 2 x Tie Bolts
  • 18 x Screws
  • 1 x Dust Box
  • 1 x Drill Template
  • 1 x Instruction Manual

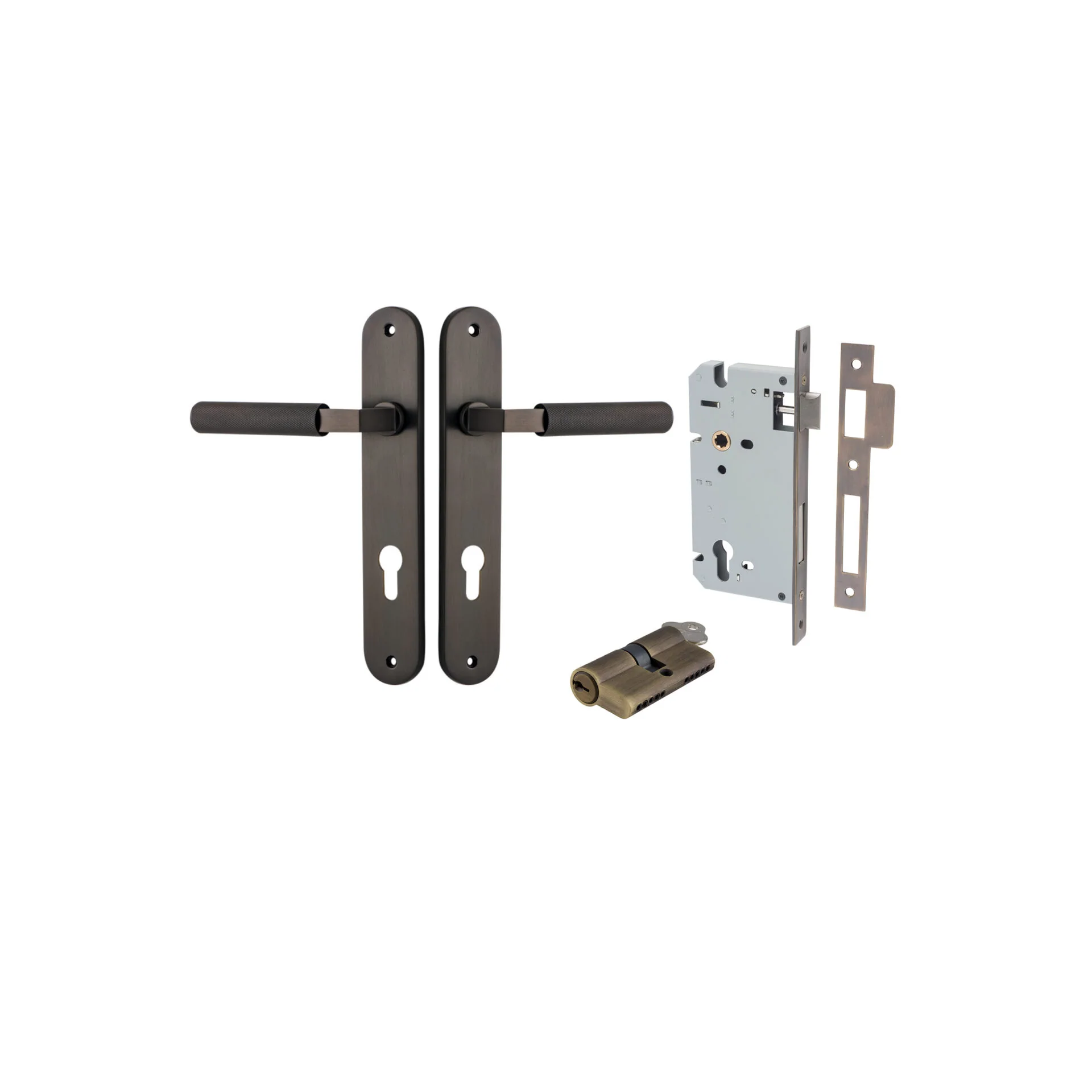

Entrance Kit Dual Function (Key/Key):

  • 2 x BrunswickĀ on OvalĀ Backplate
  • 1 x Euro Mortice Lock CTC85mm Backset 60mm
  • 1 x Face Plate
  • 1 x Striker Plate
  • 1 x Euro Cylinder 5 Pin Dual Function
  • 2 x Keys
  • 1 x Standard Spindle
  • 2 x Sprung Spindles
  • 2 x Tie Bolts
  • 18 x Screws
  • 1 x Dust Box
  • 1 x Drill Template
  • 1 x Instruction Manual
