HALLIDAY + BAILLIE 33mm BACKSET SLIDING LOCK - HB640 SERIES

HALLIDAY + BAILLIE 33mm BACKSET SLIDING LOCK - HB640 SERIES

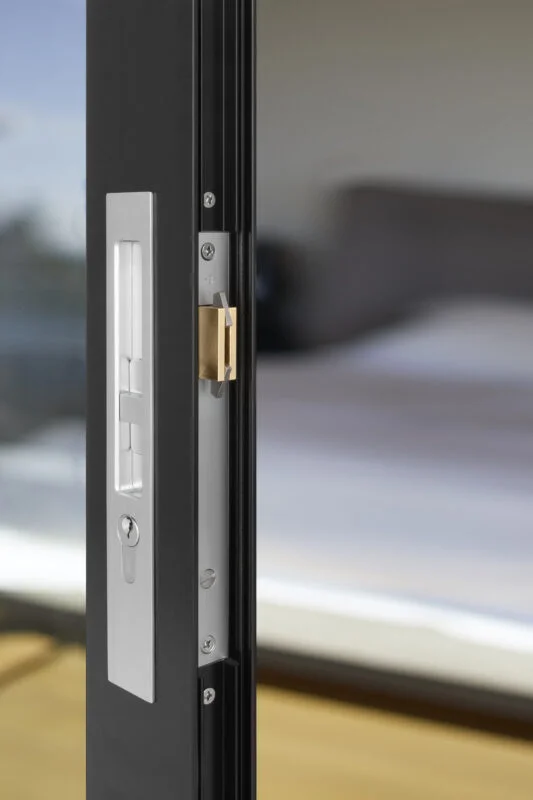

The Halliday + Baillie HB640 narrow backset sliding door lock set series functions like the HB 630 series. It is designed for use primarily in aluminium sliding doors but can also be used in timber doors with narrow stiles. Sliding the “snib” (a slide block that acts like a traditional thumb turn) operates the bolt unless the cylinder is engaged. The key cylinder will lock the snib in place and does not activate the bolt.

System Configuration Options:
HB 640 : Key/Snib Both Sides
HB 642 : Key/Snib one side, Blank Outside
HB 643 : Key/Snib one side, No Pull Outside

Material: Diecast zinc with brass and 316 stainless steel

Backset : 33mm

Minimum door thickness : 38mm

Flush pulls : 250mm x 36mm x 13mm

Internal grip depth: 11mm

Click HERE for HB640 technical downloads.

Suitable for timber or aluminium doors with narrow stiles

*Please Order with timber fixing kit HERE for timber doors.

Adjustable Strike Plate & Screws, click HERE.

Rebate Kit for HB640 series available, click HERE.

Finishes Available:
Satin Chrome, Electro Black Ace, Electro Medium Bronze, Electro Dark Bronze, Electro Flat White

Available in electroplate finishes only (powder coat unavailable).

For more information on the finishes click HERE.
Please note only the finishes listed on this page are available for purchase.

Standard HB 640 series set includes :
 HB 640 Series Narrow Lock Body
 Two HB 668 Flush Pulls
 HB 604 Fixing Kits (one set for HB 643)
 Strike and Dust Box - Standard
 Two spindle lengths (please specify door thickness for doors over 50mm)
 Fasteners


Cylinders to be ordered separately with confirmation of the door thickness for order.

This item is special order only, please allow 15-20 working days for dispatch.

Select Finish
Select System
From $219.00

Original: $730.00

-70%
HALLIDAY + BAILLIE 33mm BACKSET SLIDING LOCK - HB640 SERIES—

$730.00

$219.00

Product Information

Shipping & Returns

Description

The Halliday + Baillie HB640 narrow backset sliding door lock set series functions like the HB 630 series. It is designed for use primarily in aluminium sliding doors but can also be used in timber doors with narrow stiles. Sliding the “snib” (a slide block that acts like a traditional thumb turn) operates the bolt unless the cylinder is engaged. The key cylinder will lock the snib in place and does not activate the bolt.

System Configuration Options:
HB 640 : Key/Snib Both Sides
HB 642 : Key/Snib one side, Blank Outside
HB 643 : Key/Snib one side, No Pull Outside

Material: Diecast zinc with brass and 316 stainless steel

Backset : 33mm

Minimum door thickness : 38mm

Flush pulls : 250mm x 36mm x 13mm

Internal grip depth: 11mm

Click HERE for HB640 technical downloads.

Suitable for timber or aluminium doors with narrow stiles

*Please Order with timber fixing kit HERE for timber doors.

Adjustable Strike Plate & Screws, click HERE.

Rebate Kit for HB640 series available, click HERE.

Finishes Available:
Satin Chrome, Electro Black Ace, Electro Medium Bronze, Electro Dark Bronze, Electro Flat White

Available in electroplate finishes only (powder coat unavailable).

For more information on the finishes click HERE.
Please note only the finishes listed on this page are available for purchase.

Standard HB 640 series set includes :
 HB 640 Series Narrow Lock Body
 Two HB 668 Flush Pulls
 HB 604 Fixing Kits (one set for HB 643)
 Strike and Dust Box - Standard
 Two spindle lengths (please specify door thickness for doors over 50mm)
 Fasteners


Cylinders to be ordered separately with confirmation of the door thickness for order.

This item is special order only, please allow 15-20 working days for dispatch.
