HALLIDAY + BAILLIE 55mm BACKSET ADJUSTABLE ROLLER MORTICE LOCK - HB2050

Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6

HALLIDAY + BAILLIE 55mm BACKSET ADJUSTABLE ROLLER MORTICE LOCK - HB2050

HALLIDAY + BAILLIE 55mm BACKSET ADJUSTABLE ROLLER MORTICE LOCK - HB2050

The largest of the Halliday + Baillie stand alone mortice locks, the HB 2050, combines a fully adjustable roller ball catch with a high security dead bolt. Designed specifically for use on hinge and pivot doors where pull handles are used rather than a lever handle, the roller ball allows for door control even when unlocked and can be used with any standard Euro cylinder escutcheon. For ultimate flexibility pull handles, door furniture and cylinders are sold separately, enabling you to mix and match to your projects aesthetic.
The roller ball is milled from 316 marine grade stainless steel, with double adjustment screws. The top screw adjusts the tension and pressure of the roller ball, with theĀ bottom screw adjusting the projection of the roller from the lock body. Irrespective of the door detail the roller ball is designed to firmly seat in the strike plate no matter
what the situation.Ā

The high security bolt is a double action 20mm length throw with integrated tungsten carbide pins. Known for itā€™s superior hardness and scratch resistance the pins will
hold the bolt secure even under sustained force.Ā

Ā

Material : Diecast Zinc, Brass, 316 Stainless Steel
Dimensions (faceplate) : 215mm x 24mm
Dimensions (case) : 165mm x 85mm
Backset : 55mm
Minimum door thickness : 35mm

Please note:
ā€¢ Strike plates ordered seperately.
ā€¢ Extended strike plates are available in specific lengths on request at an additional cost.
ā€¢ Rebated strike plates are also available.
ā€¢ A dual action strike plate is available for swing through doors.
ā€¢ For full strike information please see separate data sheets.Ā

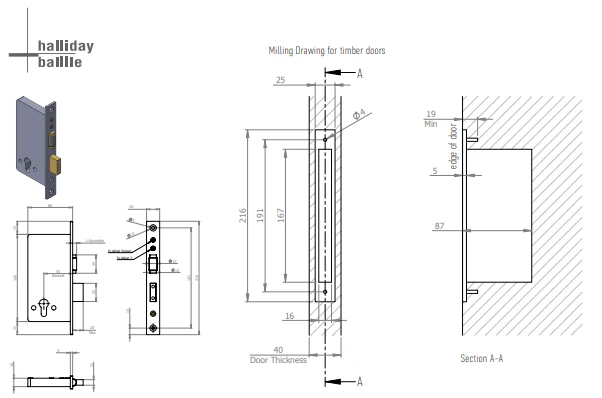

ClickĀ HERE for HB2050 technical downloads.

Cylinder is NOT included, please order type + length to suit.

Suitable for timber and aluminium doors, or steel doors
with an integrated lock box.

Finishes Available:
Satin Chrome, Brushed Nickel, Electro Black Ace, Electro Medium Bronze, Electro Dark Bronze, Electro Flat White

For more information on the finishes click HERE.
Please note only the finishes listed on this page are available for purchase.

This item is special order only, please allow 15-20 working days for dispatch.

Select Finish
From $165.00

Original: $550.00

-70%
HALLIDAY + BAILLIE 55mm BACKSET ADJUSTABLE ROLLER MORTICE LOCK - HB2050ā€”

$550.00

$165.00

Product Information

Shipping & Returns

Description

The largest of the Halliday + Baillie stand alone mortice locks, the HB 2050, combines a fully adjustable roller ball catch with a high security dead bolt. Designed specifically for use on hinge and pivot doors where pull handles are used rather than a lever handle, the roller ball allows for door control even when unlocked and can be used with any standard Euro cylinder escutcheon. For ultimate flexibility pull handles, door furniture and cylinders are sold separately, enabling you to mix and match to your projects aesthetic.
The roller ball is milled from 316 marine grade stainless steel, with double adjustment screws. The top screw adjusts the tension and pressure of the roller ball, with theĀ bottom screw adjusting the projection of the roller from the lock body. Irrespective of the door detail the roller ball is designed to firmly seat in the strike plate no matter
what the situation.Ā

The high security bolt is a double action 20mm length throw with integrated tungsten carbide pins. Known for itā€™s superior hardness and scratch resistance the pins will
hold the bolt secure even under sustained force.Ā

Ā

Material : Diecast Zinc, Brass, 316 Stainless Steel
Dimensions (faceplate) : 215mm x 24mm
Dimensions (case) : 165mm x 85mm
Backset : 55mm
Minimum door thickness : 35mm

Please note:
ā€¢ Strike plates ordered seperately.
ā€¢ Extended strike plates are available in specific lengths on request at an additional cost.
ā€¢ Rebated strike plates are also available.
ā€¢ A dual action strike plate is available for swing through doors.
ā€¢ For full strike information please see separate data sheets.Ā

ClickĀ HERE for HB2050 technical downloads.

Cylinder is NOT included, please order type + length to suit.

Suitable for timber and aluminium doors, or steel doors
with an integrated lock box.

Finishes Available:
Satin Chrome, Brushed Nickel, Electro Black Ace, Electro Medium Bronze, Electro Dark Bronze, Electro Flat White

For more information on the finishes click HERE.
Please note only the finishes listed on this page are available for purchase.

This item is special order only, please allow 15-20 working days for dispatch.
