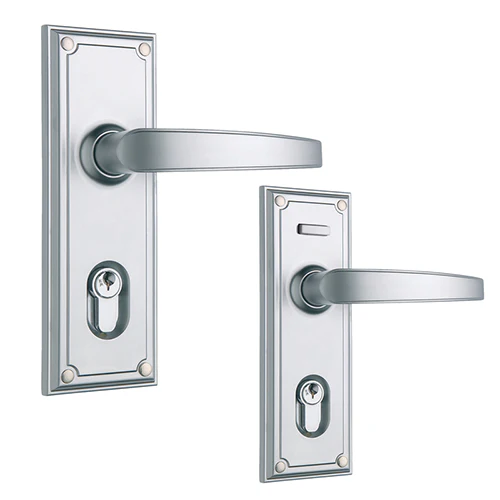

Entrance Set (Locking) - 890TLE**

SC - Satin Chrome | BG - Bright Gold | BC - Bright Chrome

Traditional styling meets advanced engineering - the Trilock double cylinder lever set is fitted out with Gainsborough's patented 3-in-1 locking mechanism in one combined lockset, offering a passage, privacy as well as a deadbolt function for extra security. Suitable for both left and right-hand doors, the lock features a 60mm backset, is 116mm in length, and is available in three stylish finishes.

Features:

• Timeless lever design with subtle engraving ideal for traditional and Hamptons style entrances
• Key operated double cylinder deadbolt from either side
• Gainsborough signature Trilock technology - 3 in 1 locking: Deadbolt, privacy and passage functions combined into one lockset
• Suitable for both left and right-hand doors
• Available in bright goldtone finish

Specification:

• Style Name: Leverset
• Product Type: Trilock
• Application: External
• Door thickness (mm): 35-45
• Backset (mm): 60
• Bore Hole (mm): 54
• Edge Bore (mm): 22
• Lever Length (mm): 118
• Locking: Locking
• Latch included: true
• Packaging dimensions - depth, height, width (mm): 65, 285, 185

• Warranty: 5 Year Tarnish Warranty, 10 Year Mechanical Warranty

Installation:

Templates are not to scale unless printed that way. Always check sizing before use.

Template for Trilock Contemporary and Traditional Entrance Sets.

Installation Instructions for Trilock Contemporary Entrance Sets.

Click HERE for step by step videos for installation.

Dummy Trim - 820TLE**

SC - Satin Chrome | BG - Bright Gold | BC - Bright Chrome

Includes inside and outside escutcheons and levers. No keyed cylinder. Suitable for non-locking leaf of double doors.

Specification:

• Style Name: Leverset
• Product Type: Trilock
• Application: External
• Backset (mm): 60
• Lever Length (mm): 118
• Locking: Non-Locking
• Packaging dimensions - depth, height, width (mm): 366, 80, 85

Installation Template:

Templates are not to scale unless printed that way. Always check sizing before use.

Template for Trilock Contemporary and Traditional Dummy Trim Set.
