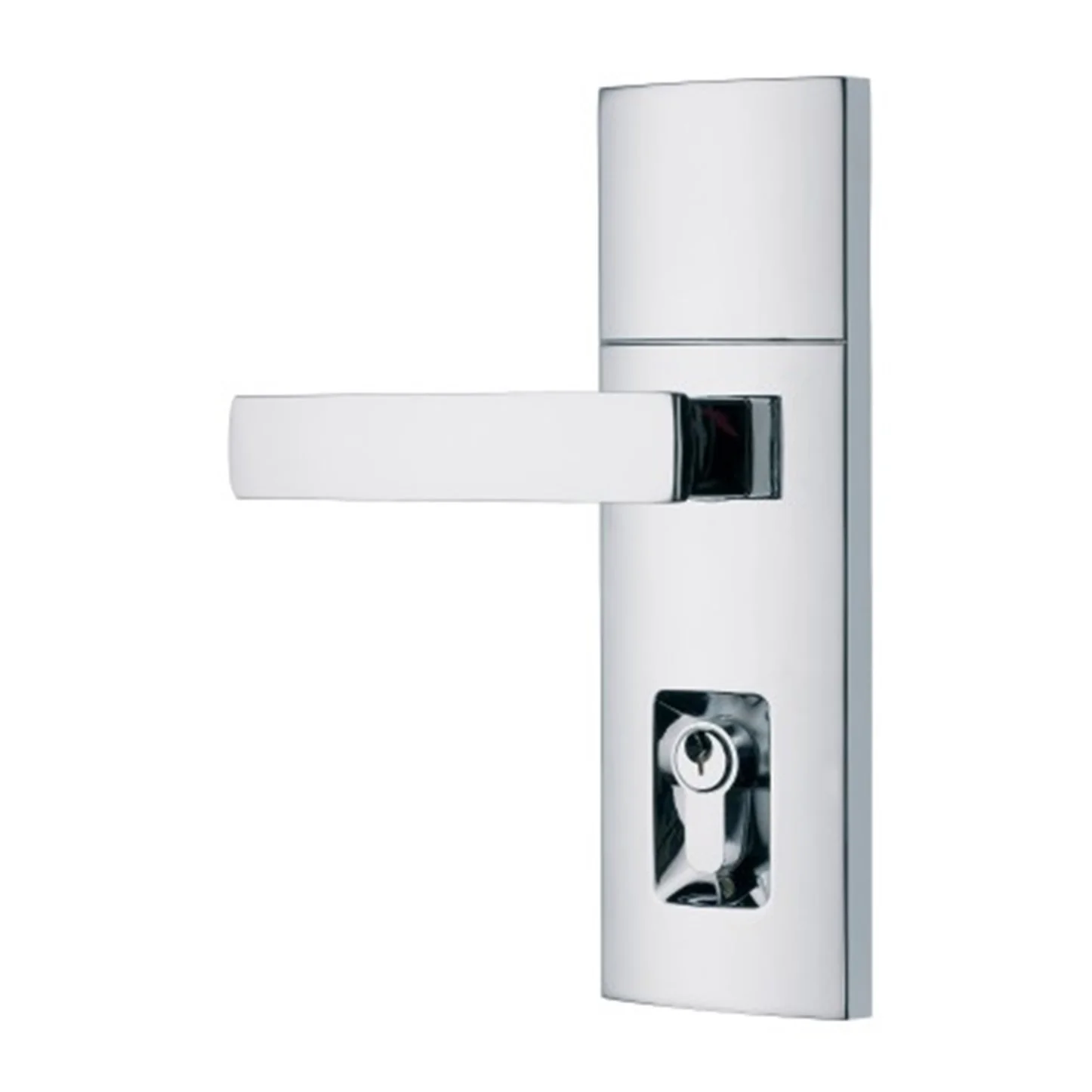

Entrance Set (Locking) - 8901ANG**

MB - Matt Black | SC - Satin Chrome | BC - Bright Chrome

Contemporary design fitted with Angular Lever to match with Neue internal hardware, Signature Trilock technology - 3 in 1 locking: Deadbolt, privacy and passage functions combined into one lockset. Double cylinder deadbolt operated by key from either side. Suitable for both left and right-hand doors. Easy to install, with a 60mm backset.

• Collection: Trilock Contemporary Series
• Function: Entrance
• Locking/Non-Locking: Locking
• Bore hole (mm): 54
• Door thickness (mm): 35-45
• Warranty: 5 Year Tarnish Warranty, 10 Year Mechanical Warranty

Installation:

Templates are not to scale unless printed that way. Always check sizing before use.

Template for Trilock Contemporary and Traditional Entrance Sets.

Installation Instructions for Trilock Contemporary Entrance Sets.

Click HERE for step by step videos for installation.

Dummy Trim - 8201ANG**

MB - Matt Black | SC - Satin Chrome | BC - Bright Chrome

Includes inside and outside escutcheons and levers. No keyed cylinder. Suitable for non-locking leaf of double doors.

Back Plate: 199mm x 63mm
Projection: 52mm

Installation Template:

Templates are not to scale unless printed that way. Always check sizing before use.

Template for Trilock Contemporary and Traditional Dummy Trim Set.
