Description

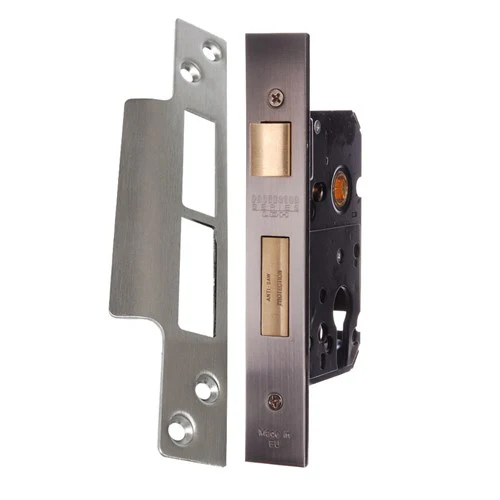

PROTECTOR heavy duty euro style sash lock with 45 mm backset and Flat Strike.

• 45 mm backset.
• Case size 108 (L) x 79 mm (D).
• Face plate 165 (L) x 25.5 mm (W).
• Pitch 48 mm.
• Incorporates fixed cam euro cylinder (not included).
• Retrofits most lever locks locks such as Yale, Union and Legge.
• Meets AS4145.2 - 1993. S3.
• Reversible latchbolt.
• 16 mm brass deadbolt with hardened steel insert.
• Key retracts latch.
• Heavy duty steel case.
• Hardened steel plates to protect both sides of the lock against drilling.
• Flat strike (no dusk box).
• Suits 32-40 mm doors.
• Supplied boxed.
• Finished in satin stainless steel.



Technical Specifications:

Brand	PROTECTOR
Compatible With Most Restricted Keying Systems	Yes
Finish	Satin Stainless Steel
Lock Grade	Domestic
Lock Pitch In mm	48
Mortice Deadbolt	Yes
Backset	45 mm
Uses Cylinder/Plug Type	Euro Fixed Cam
