DORMA FLOOR SPRING BTS75V EN1-4
Description

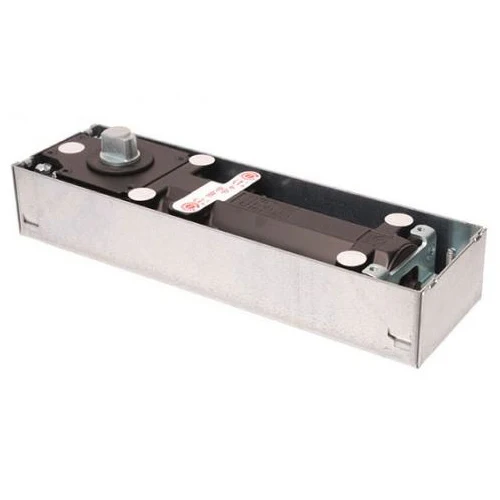

DORMA BTS 90 EN1-4 floor spring body. Including cement box and standard spindle.
The BTS 75V is a universal non-handed floor spring for left hand (LH) or right hand (RH) single and double action doors. With adjustable spring stength and closing speed, with closing action operational from approx. 175°. Featuring hydraulically fully controlled closing cycle and mechanical backcheck.
Available in Non-Hold Open or 90° Hold Open
Suitable for installation on single and double action doors up to 1100mm (W) with a max. 120kg leaf weight.
Technical Specifications
Brand DORMAKABA
Has Backcheck Yes
Spring Strength EN1-4
Max Door Width 1100 mm
Maximum Weight 120 Kg
Dimensions 285mm (L) x 82mm (W) x 50mm (H)
Weight 3.0kg
Cover plate sold separately - See part no. DO7510VSS
Top Centre 8062 sold separately - See part no. DO8062
Bottom Strap 7422 - See part no. 7422 or 7421
