CRL NARROW WIDTH FLOOR SPRING

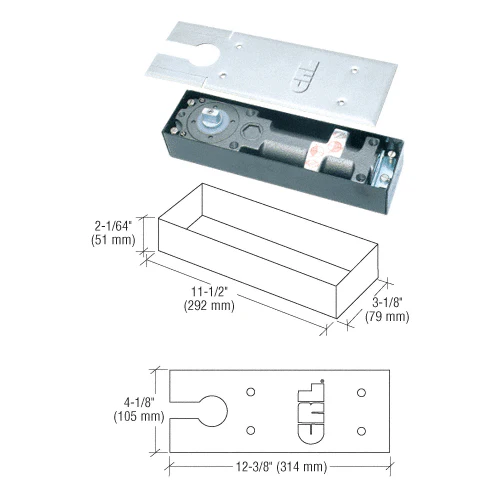

CRL Medium Duty 180º (Hold Open at 90º) Narrow Width Floor Mounted Closer
- The Perfect Door Closer to Support CRL's Patch Hardware
- Interchangeable Spindle Heights
- 5 Year Limited Warranty
- UL Listed
- These closers are preferred on doors installed with Patch Hardware because smaller cover plates are more attractive in this type of installation. The Door Closer has separate valves to control closing and latching speeds. 90º Hold Open and No Hold Open models are available.
The 1/8" (3 mm) collar height Spindle is supplied with the door closer, providing a 5/16" (8 mm) clearance from finished floor to door bottom. Optional Spindles to accommodate different finished floor heights are also available. Other accessories, such as Cover Plates, Pivots, Center-Hung and Offset Arms are also available.
Note: This Door Closer is designed to open to a maximum of 180º. An auxiliary floor or overhead stop is required to stop the door at less than 180 degrees.
Specifications:
Maximum Door Weight: 264 Lbs. (120 kg)
Maximum Interior Door Width: 42" (1.07 mm)
Maximum Exterior Door Width: 38" (965 mm)
Product Information
Product Information
Shipping & Returns
Shipping & Returns
CRL NARROW WIDTH FLOOR SPRING
CRL NARROW WIDTH FLOOR SPRING
CRL Medium Duty 180º (Hold Open at 90º) Narrow Width Floor Mounted Closer
- The Perfect Door Closer to Support CRL's Patch Hardware
- Interchangeable Spindle Heights
- 5 Year Limited Warranty
- UL Listed
- These closers are preferred on doors installed with Patch Hardware because smaller cover plates are more attractive in this type of installation. The Door Closer has separate valves to control closing and latching speeds. 90º Hold Open and No Hold Open models are available.
The 1/8" (3 mm) collar height Spindle is supplied with the door closer, providing a 5/16" (8 mm) clearance from finished floor to door bottom. Optional Spindles to accommodate different finished floor heights are also available. Other accessories, such as Cover Plates, Pivots, Center-Hung and Offset Arms are also available.
Note: This Door Closer is designed to open to a maximum of 180º. An auxiliary floor or overhead stop is required to stop the door at less than 180 degrees.
Specifications:
Maximum Door Weight: 264 Lbs. (120 kg)
Maximum Interior Door Width: 42" (1.07 mm)
Maximum Exterior Door Width: 38" (965 mm)
