Specification

Material:

#304 Satin Stainless Steel Frame & Mounts,
White Padded PVC Backrest
Mounting:

Concealed Fix
Features 20mm Adjustable Height on Backrest
Backrest Standoff:

Adjustable depth to suit installation requirements

Specify:

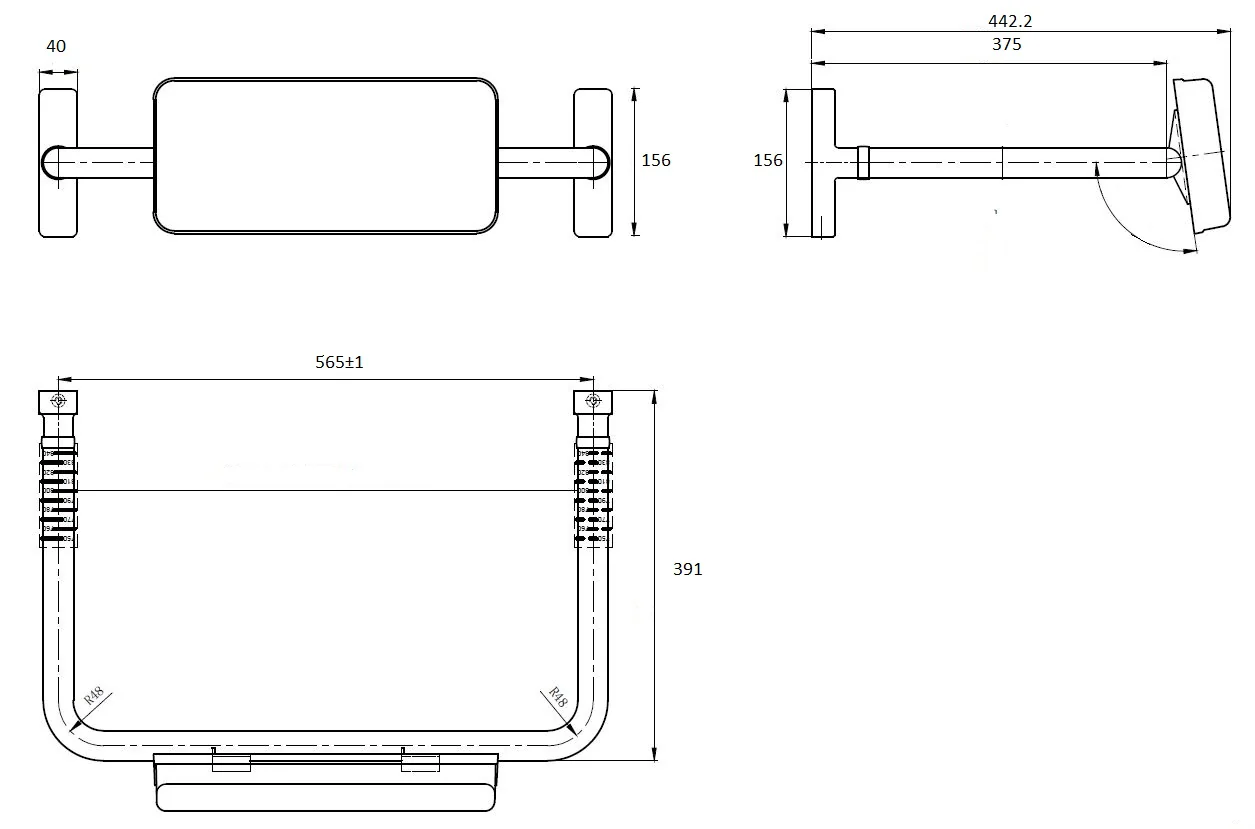

• Straight Rail Padded Backrest

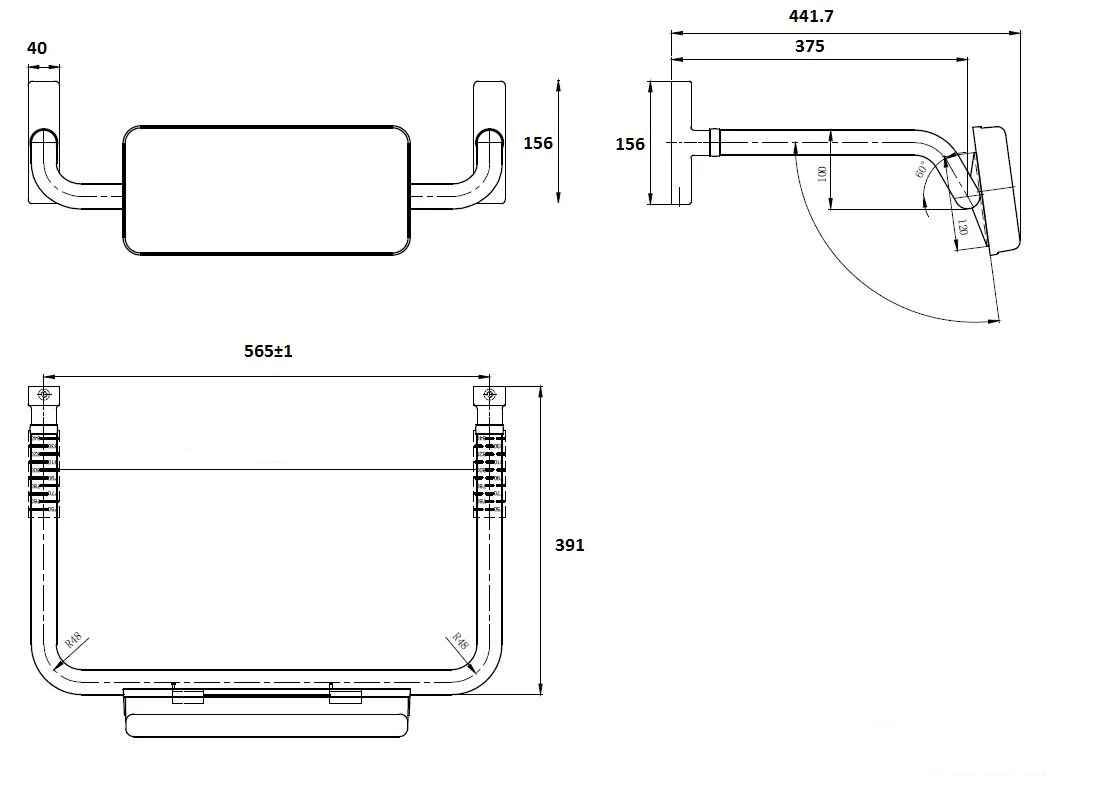

• Curved Rail Padded Backrest

Note

* Installation instructions provided

* This unit is accessible compliant when installed in accordance with AS1428.1. guidelines.

*It is the responsibility of the installer to ensure that the surface/substrate that the unit is installed upon and the fixings used are suitable to withstand the weight bearing loads of the unit and if required as per AS1428 / Australian building code regulations.

*The materials and construction of this grab rail meets AS1428.1 force requirements to be able to withstand a force of 1100Nm applied at any position and in any direction without deformation.

*Also available with Vandal Proof Pad
