Material:

• Diecast Zinc, Alloy ZP3
• #304 Stainless Steel Shaft
• Nylon Inserts

Finish:

• Satin Chrome Plate

Mounting:

• Screw Fix

Minimum Hinge Clearance For Lift-Off Hinges:

• 30mm

Specify:

• Hold Open or Hold Closed

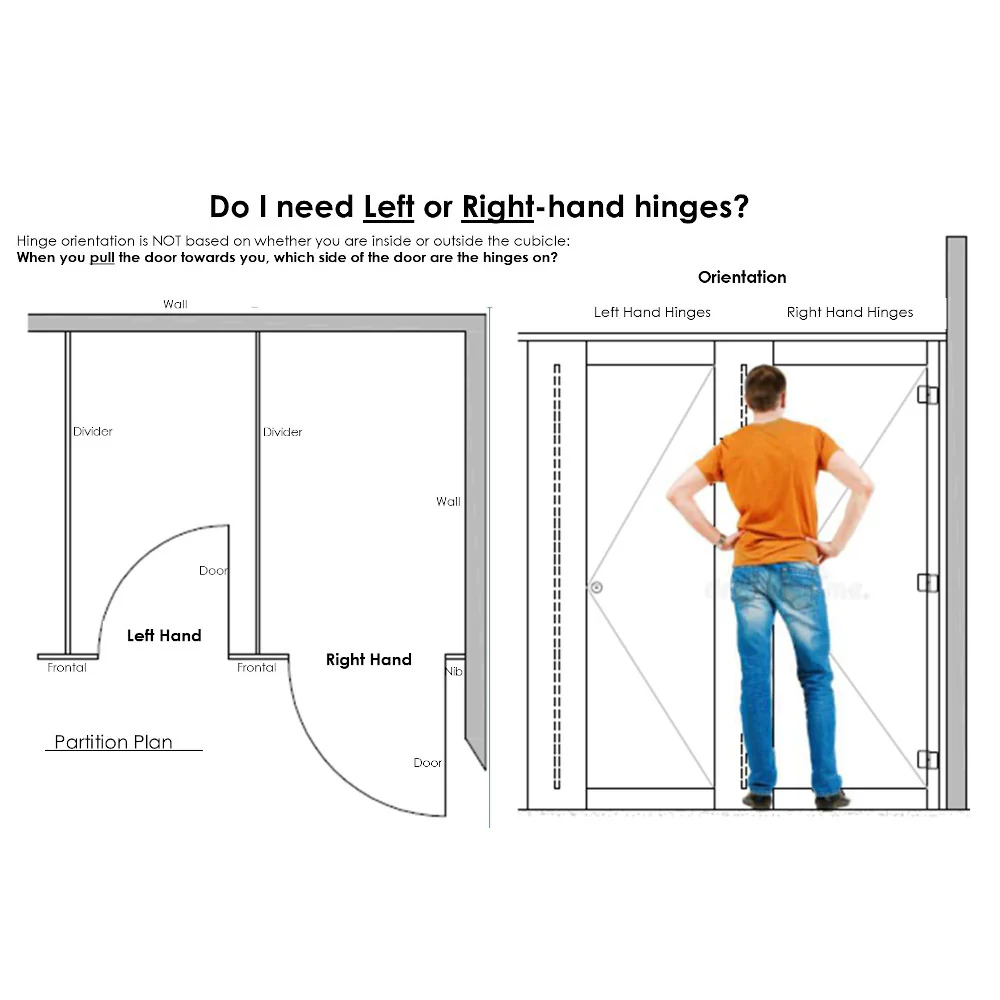

• Right or Left Hand; see hinge orientation image for more information.
• With or without screw fixings

Features:

• Gravity-assisted door opening/door closing with lift-off capability.

Load Rating:

• 15Kg per hinge

For optimum performance:

• 2 hinges per door up to 30Kgs
• For doors over 30Kg allow for 15Kg per hinge

Note: 3 Hinges per door is recommended to prevent door bowing

Note:

- Hinges sold individually

- 3 Hinges per door is recommended to prevent door bowing

- Right hand hinge shown
- Screws for 13mm board (10g x 1/2 CSK)
- Screws for 18mm or bigger board (10g x 3/4 CSK)
- Gravity hinges contain no mechanical components. Functionality of these hinges can vary depending on the environment.
