Specification

Material:

• Diecast Zinc, Alloy ZP3
• Diecast Zinc, Alloy ZP3, ABS Snap-On Cover

Features:

Advantage TPH Kit comes as a Visual Pack (as shown).Includes:
Lock And Indicator Set
- MODA_LOCK_SCP
3 X Spring Hinges
- MODAHINGE_SCP (use product code below to specify Handing (LH or RH) when ordering).
Bumper
- MODA_BUMPMKII_SCP
Coat Hook
- MODA_HOOK_SCP
Supplied with universal fixing pack to suit board thickness variation between 13mm to 25mm+

Specify/ Finish:

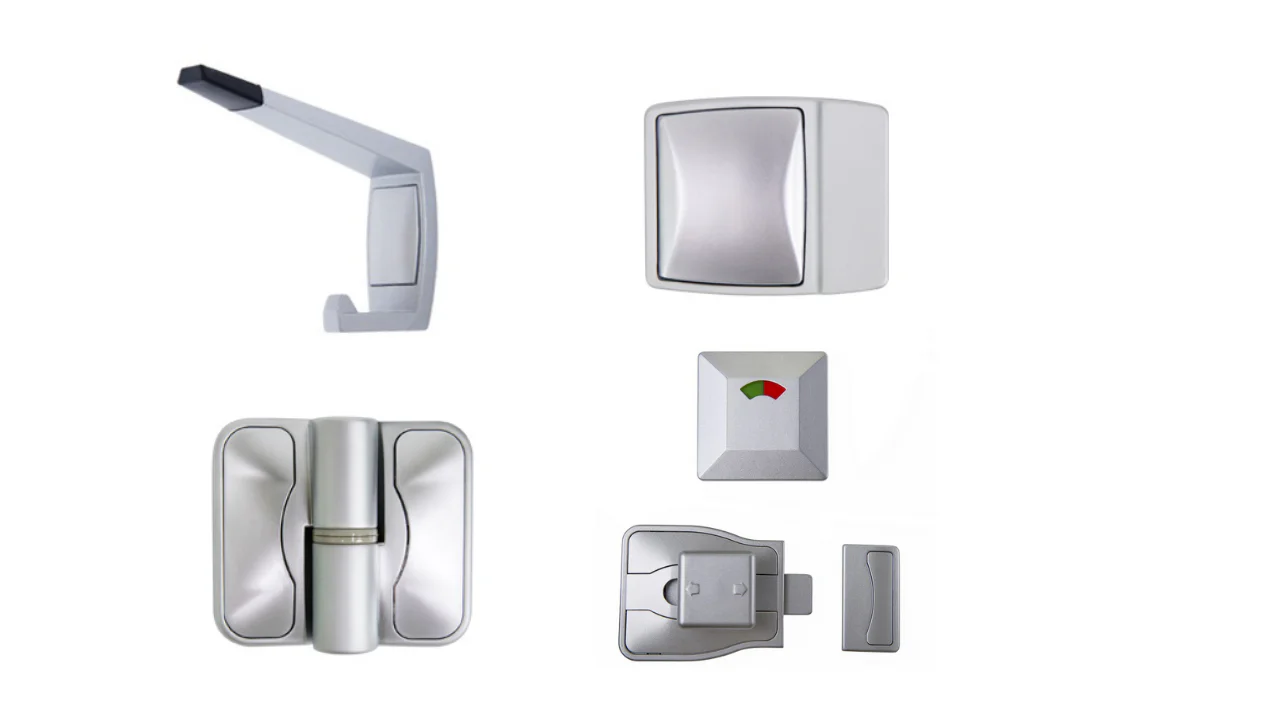

• Left Hand, Satin Chrome Plate
• Right Hand, Satin Chrome Plate

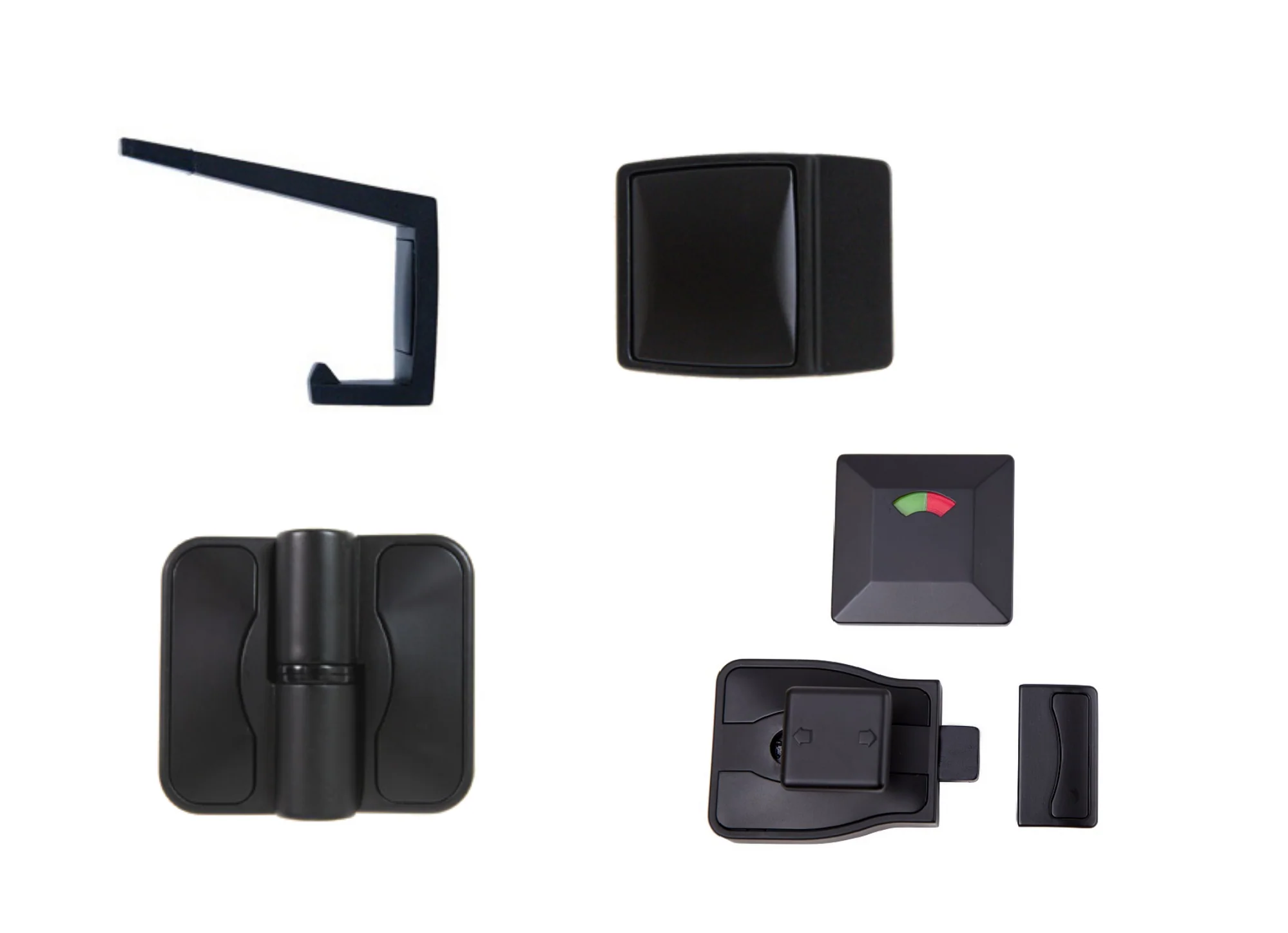

• Left Hand, Designer Matte Black
• Right Hand, Designer Matte Black

Mounting:

• Screw Fix (13mm & 18mm Screw Fixings)
• Surface Mounted

Hinge Load Rating:

• 15Kg per hinge

For optimum performance:

• 2 hinges per door up to 30Kgs
• For doors over 30Kg allow for 15Kg per hinge
