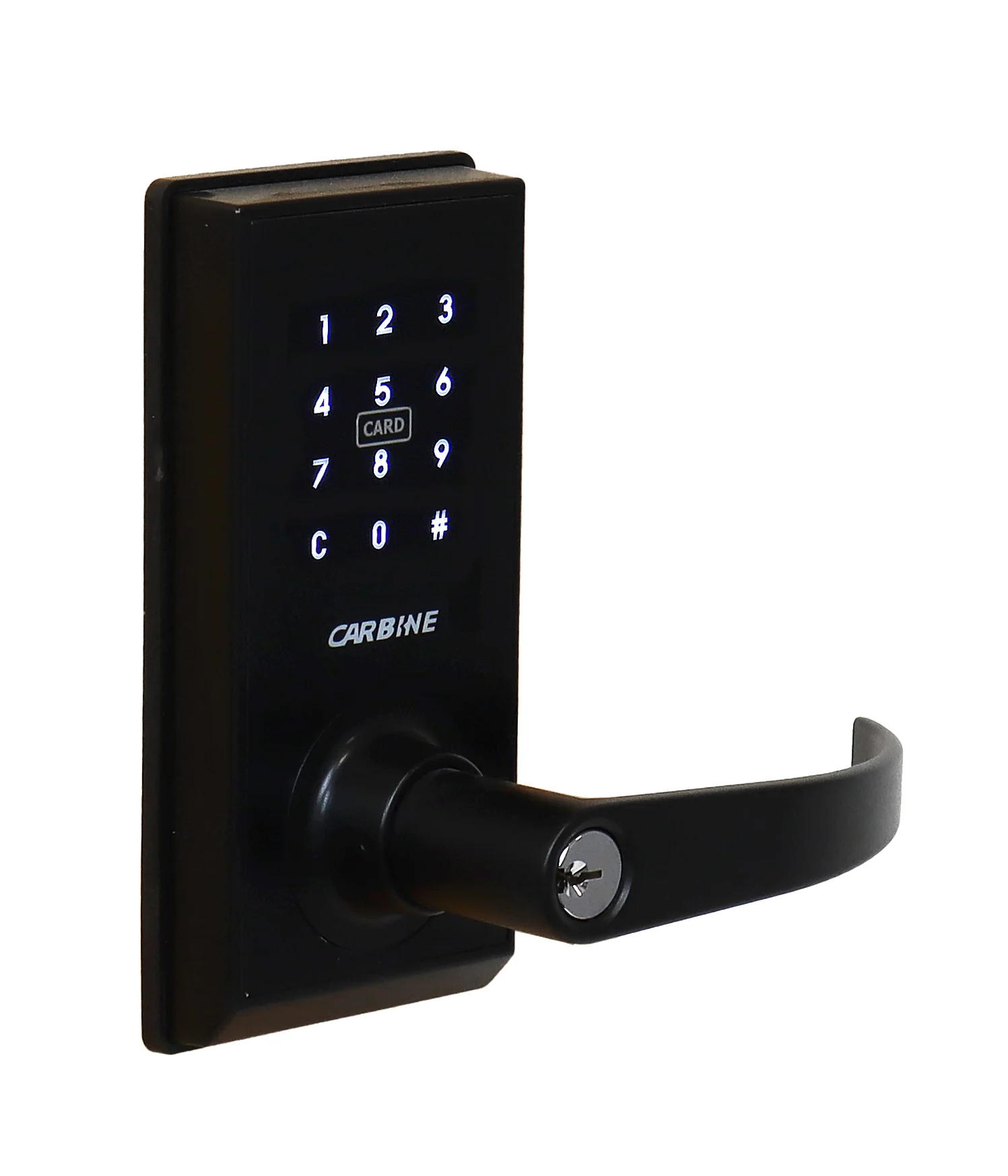

Carbine CEL2-3in1 Electronic Leverset (Fire Rated)

1. Touch LED Keypad for code entry
2. RFID card or Sticker entry
3. Key override entry using common front door keys

Features include:

• Leverset model fits in standard 54 mm lockset hole, no additional drilling required
• Dimensions: 155mm H x 75mm W
• Touch keypad with backlight
• Key override
• RFID card entry
• Access codes, RFID cards & phones are programmed through the lock
• 1 programming code, 25 user codes and 25 RFID cards
• Codes from 4 - 8 digits
• Guiding code, ability to enter program false numbers before true code
• Vacation mode, lock out all users
• Auto lock delay timer, 5 -99 seconds. Pre set at 5 seconds
• Double authorization mode possible, card and code
• ANSI G2
• C4 keyway 6 pin cylinder, keyed to 5 pin key
• Suits door thicknesses of 35mm to 51mm
• Leverset model has 60-70mm adjustable SS latch
• SL8 style lever (same as CDL-SL8SS)
• Mortice version available to suit standard backset mortice locks *Note: Mortice model only suitable for doors with jamb overlap of 16mm or less
• Requires 4 AA batteries, for best results we recommend you use only Duracell Procell batteries (batteries sold separately)

• Fire tested for 1 hour
• Box Packed
• RFID Cards sold separately
• RFID stickers available to attach to back of your mobile phone (sold separately)
