BRITON 2700 COMMERCIAL CAM ACTION DOOR CLOSER
The Briton 2700 Series incorporates cam action technology to reduce the resistance encountered when opening fire or smoke barrier doors.
The reduced force required to open fire doors makes entering and exiting buildings much easier for all users – including the elderly, those with physical disabilities and small children.
In contrast to a conventional rack and pinion door closer, the linear cam action principle is extremely efficient. The initial opening force decreases as the door opens, and the closer retains power and control to close the door afterwards.
The Briton 2700 Series offers easy opening and reliable closing, while meeting accessibility standards.
Fire Rated: Tested on fire door assemblies in accordance with Australian Standards, refer fire door manufacturer for specific approval details
| Handing | Non-handed |
| Models | Push and Pull Mounting |
| Strength | Adjustable strength 1 to 5 |
| Arm type | Track |
| Max open angle | 180° (pull side) |
| Max door weight | 40kg - 100kg |
| Min / Max door width | 850mm - 1250mm |

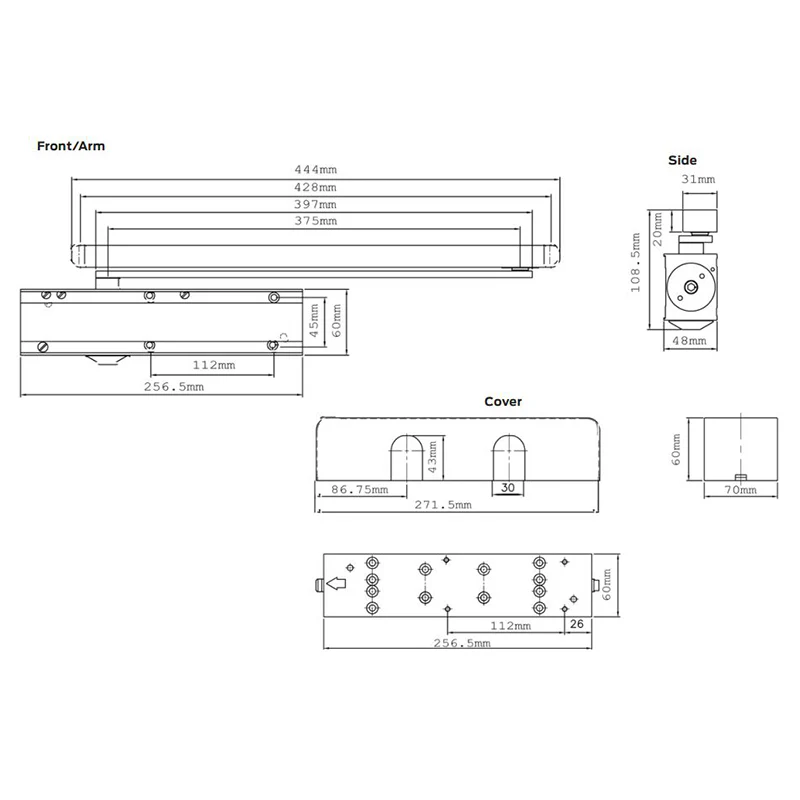

| Dimension | 270mm x 68mm x 60mm |
| Adjustments | Delayed action, backcheck, closing and latching speed |
| Options (sold separately) | 80-120° hold open & cushion limit stay |
