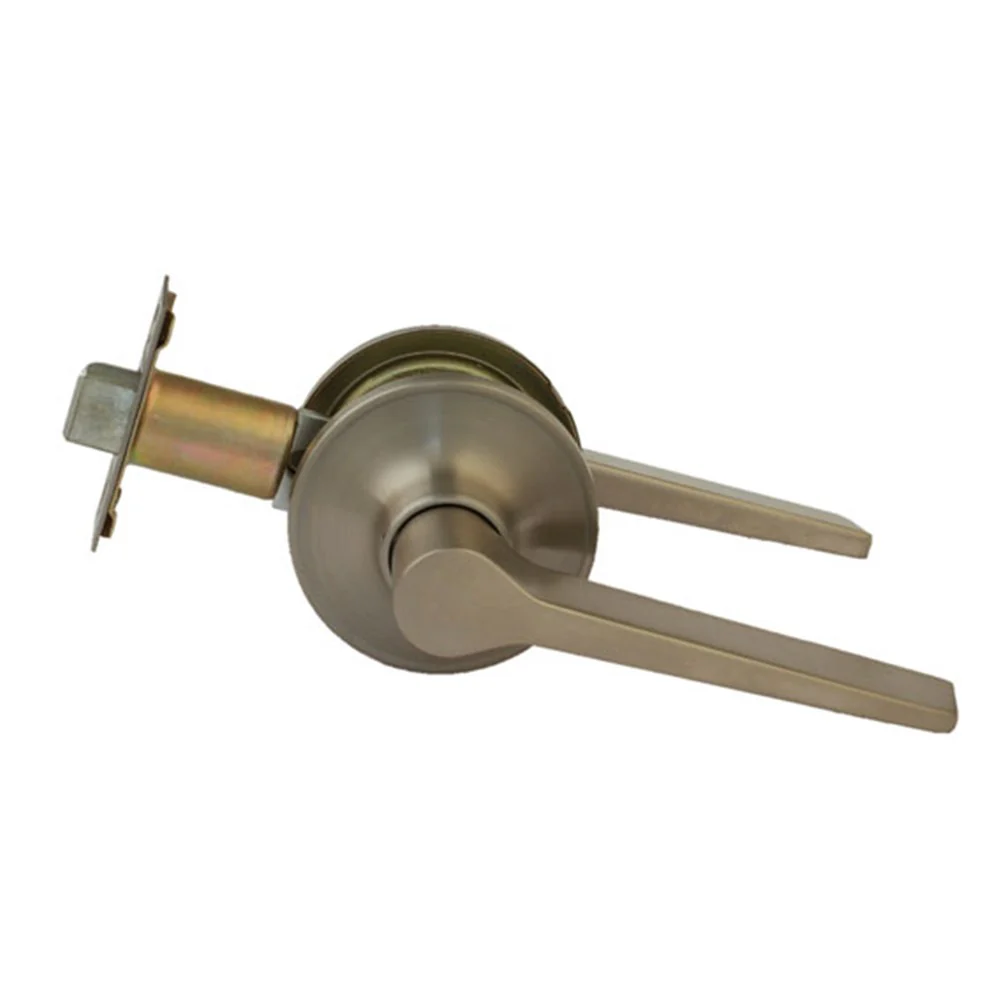

BRAVA Urban LEX series passage leverset. Domestic grade passage leverset.

Entrance function

• Key outside locks and unlocks both levers.
• Turnsnib inside, locks and unlocks both levers.

Door thickness : 35-51 mm

Backset; adjustable 60/70 mm

max. Lever / knob projection (distance may not include turnsnib): 59.7 mm

Strike: 70 mm x 27 mm x 1.2 mm

Latch: adjustable 60/70 mm

Latch face plate: 57 mm x 25 mm

Cylinder: LW4 profile

Door handing: Non-handed levers

Rose: 66.5 mm



Passage function

• Both inside and outside levers are always free.

Door thickness : 35-51 mm

Backset: adjustable 60/70 mm

Max. Lever / knob projection (distance may not include turnsnib): 53 mm

Strike: 70 mm x 27 mm x 1.2 mm

Latch: adjustable 60/70 mm

Latch face plate: 57 mm x 25 mm

Door handing: Non-handed levers

Rose: 66.5 mm



Privacy function

• Outside opened by lever when free. Can be unlocked in an emergency situation with a coin or screwdriver.
• Inside opened by lever when free, turnsnib locks and unlocks both levers.

Door thickness : 35-51 mm

Backset: adjustable 60/70 mm

Max. Lever / knob projection (distance may not include turnsnib): 53 mm

Strike: 70 mm x 27 mm x 1.2 mm

Latch: adjustable 60/70 mm

Latch face plate: 57 mm x 25 mm

Door handing: Non-handed levers

Rose: 66.5 mm



Dummy lever function

• Fixed single lever

Door thickness: No limit-front screw fix

Max. Lever / knob projection (distance may not include turnsnib): 53 mm

Door Handing: Non-handed lever

Rose: 66.5 mm



Additional info

Tiebolt concealed fixing.

Straight lever design.

Finished in Matt Black, Satin Stainless Steel or Chrome Plate.

2 x keys supplied on silca LW4 profile (Entrance variants only).

Supplied boxed (and colour coded) with mounting hardware.
