BRAVA Urban LYR series concealed fix passage leverset. Domestic grade passage leverset.

Passage function

• Both inside and outside levers are always free.

Additional info

Tiebolt concealed fixing.

Horizon lever design.

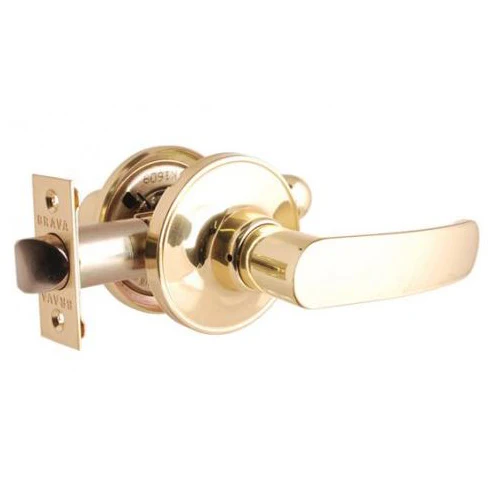

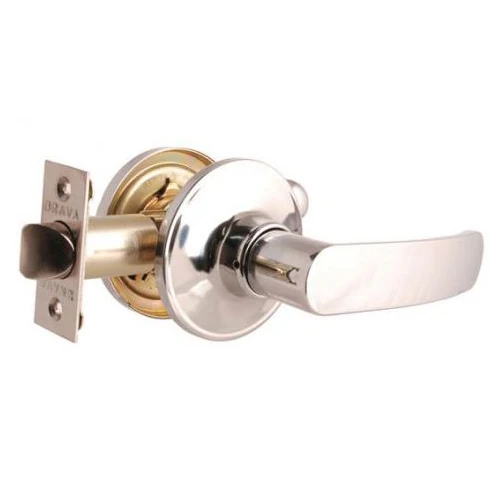

Finished in satin stainless steel, chrome plate or polished brass.

Supplied boxed (and colour coded) with mounting hardware.

Door thickness	35-51mm
Backset	adjustable 60/70mm
max. Lever / knob projection distance may not include turnsnib	53mm
Strike	70mm x 27mm x 1.2mm
Latch	adjustable 60/70mm
Latch face plate	57mm x 25mm
Door handing	Non-handed levers
Rose	66.5mm



Adjustable to suit door thickness's of 35 to 51mm.
