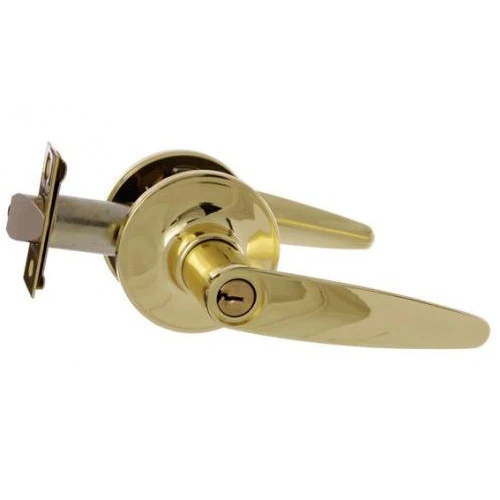

BRAVA Urban LH series entrance leverset. Domestic grade entrance leverset.

Entrance function

• Outside opened by lever when free, key or turnsib locks or unlocks inside and outside lever.
• Inside opened by lever when free.

Additional info

Silca LW4 keyway.

5pin cylinder.

Rekeyable to 6pin.

Tiebolt fixing.

Straight lever design.

Supplied boxed (and colour coded) with mounting hardware.



Door thickness	35-51mm
Backset	adjustable 60/70mm
max. Lever / knob projection distance may not include turnsnib	62mm
Strike	70mm x 27mm x 1.2mm
Latch	adjustable 60/70mm
Latch face plate	57mm x 25mm
Cylinder	LW4 profile
Door handing	Non-handed levers
Rose	66.5mm
