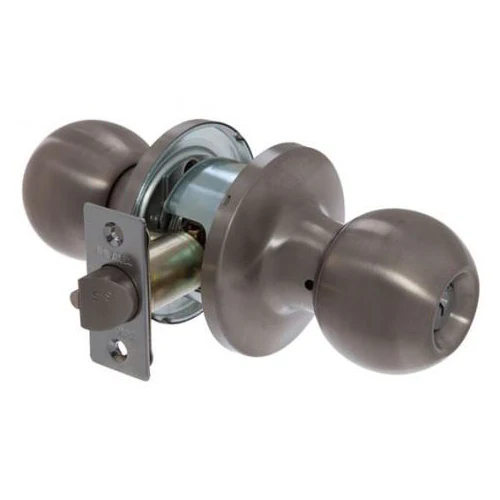

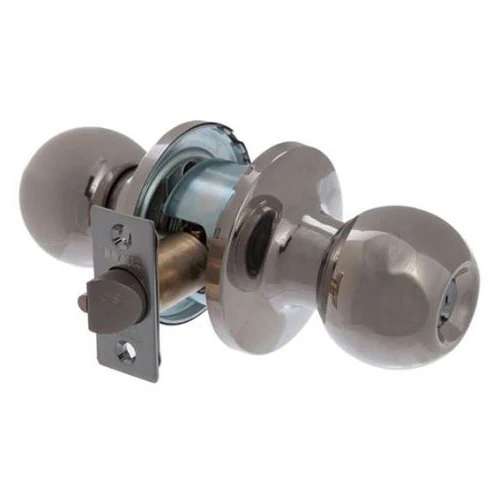

BRAVA RA SERIES COMMERCIAL STOREROOM KNOB SET
BRAVA Metro RA3000 series commercial grade tiebolt 60-70 mm backset storeroom knobset.
Ā Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets.
Storeroom function
- Outside knob unlocked by key, knob retracts the latch.
-
Ā Outside knobĀ can notĀ be left unlocked, key retained. - Inside knob free at all times.
Additional info
- Tiebolt concealed fixing.
- Silca LW5 profile.
- Incorporates the popular PD 8221 barrel.
- Compatible with most restricted keying systems.
- Boxed and colour coded.
- 2 keys supplied.
- Fire rated.
- Finished in satin chrome.
| Door thickness | 35mm - 45mm |
| Backset | 60/70mm adjustable latch |
|
max. Lever / knob projection distance may not include turnsnib |
73mm |
| Strike | 70mm x 28mm x 2mm |
| Latch | 60/70mm adjustable |
| Latch face plate | 25mm x 57mm |
| Cylinder | LW5 profile |
| Door handing | Non-handed levers |
| Rose | 75mm |
