BRAVA METRO EL SERIES ENTRANCE LEVER SET 70MM BACKSET MATT BLACK

Product image 1

BRAVA METRO EL SERIES ENTRANCE LEVER SET 70MM BACKSET MATT BLACK

BRAVA METRO EL SERIES ENTRANCE LEVER SET 70MM BACKSET MATT BLACK

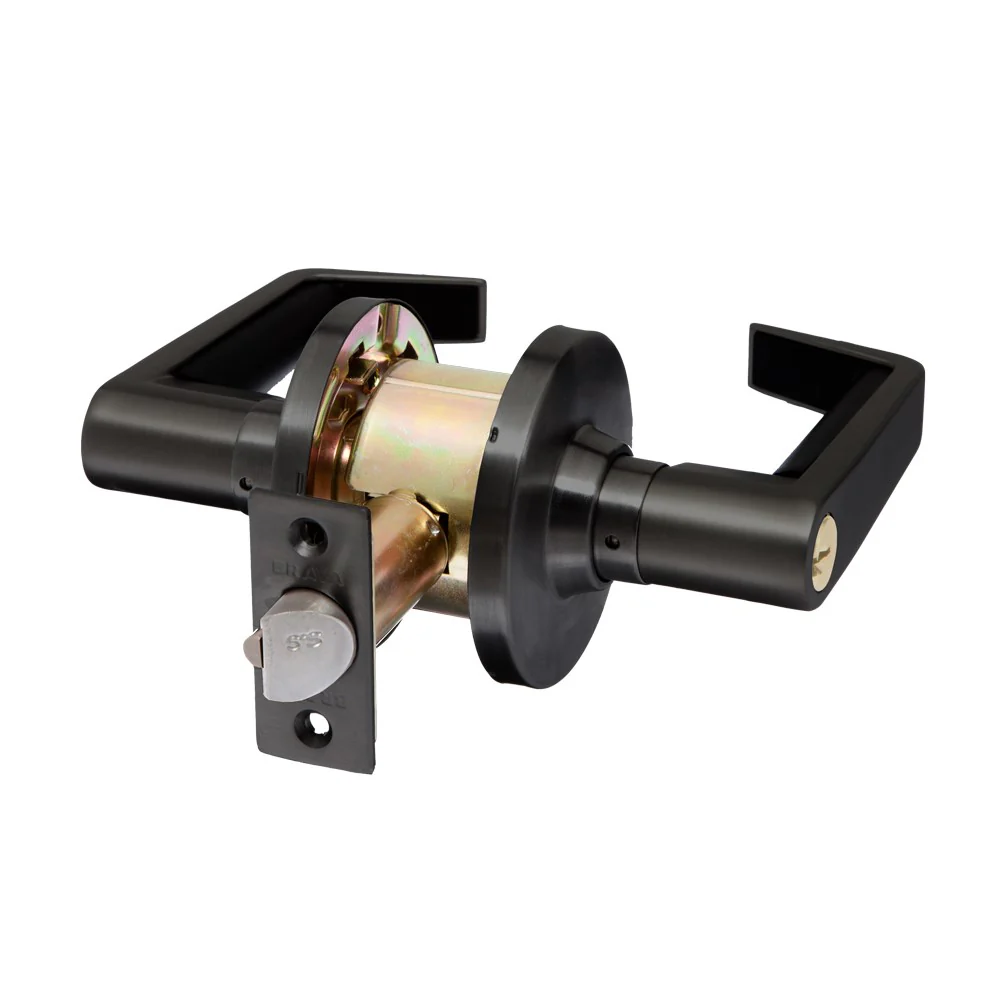

BRAVA Metro EL6000 series commercial grade entrance leverset 70 mm backset.

firerated-iconĀ BCA AS1428.1 -2009 compliant leverset.

firerated-iconĀ Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets.

Entrance function

  • Outside key unlocks outside lever.
  • Inside lever free at all times, push button locks outside lever.

Additional info

  • Cylindrical fixing.
  • Silca LW5 profile 6 pin cylinder.
  • Incorporates the popular PD 8221 barrel.
  • Compatible with most restricted keying systems.
  • Boxed and colour coded.
  • 2 keys supplied.
  • Fire rated.
  • BCA compliant.
  • Finished in matt black.
Door thickness 35-45 mm
Backset 70 mm
max. Lever / knob projection
distance may not include turnsnib 		63.7 mm
Strike 70 mm x 27 mm x 1.2 mm
Latch 70 mm backset
Latch face plate 57 mm x 25 mm
Cylinder LW5 profile
Door handing Non-handed knobs/levers
Rose 75 mm

Ā

Technical Specifications

Brand BRAVA
AS1428.1 Compliant Lever (AS1428.1CO) Yes
Clutching Levers No
Compatible With Most Restricted Keying Systems Yes
Finish Matt Black
Function Entrance
Lock Grade Commercial
Lock Type Cylindrical
Rose Diameter (in mm) 75
Suits Door Thickness 35 mm to 45 mm
Backset 70 mm
Fire Rated Yes, 4 hours
Key Profile LW5
