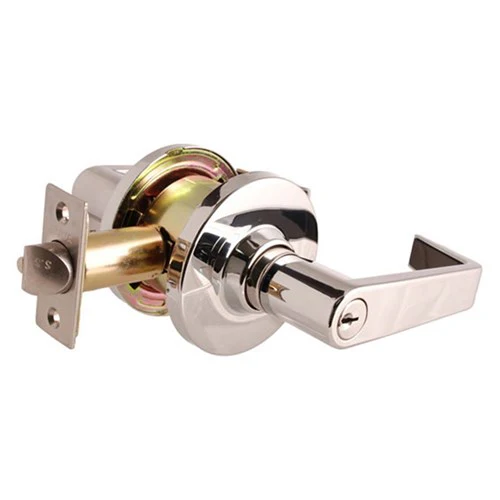

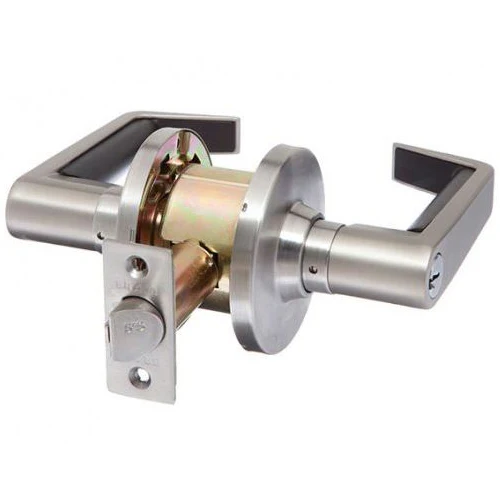

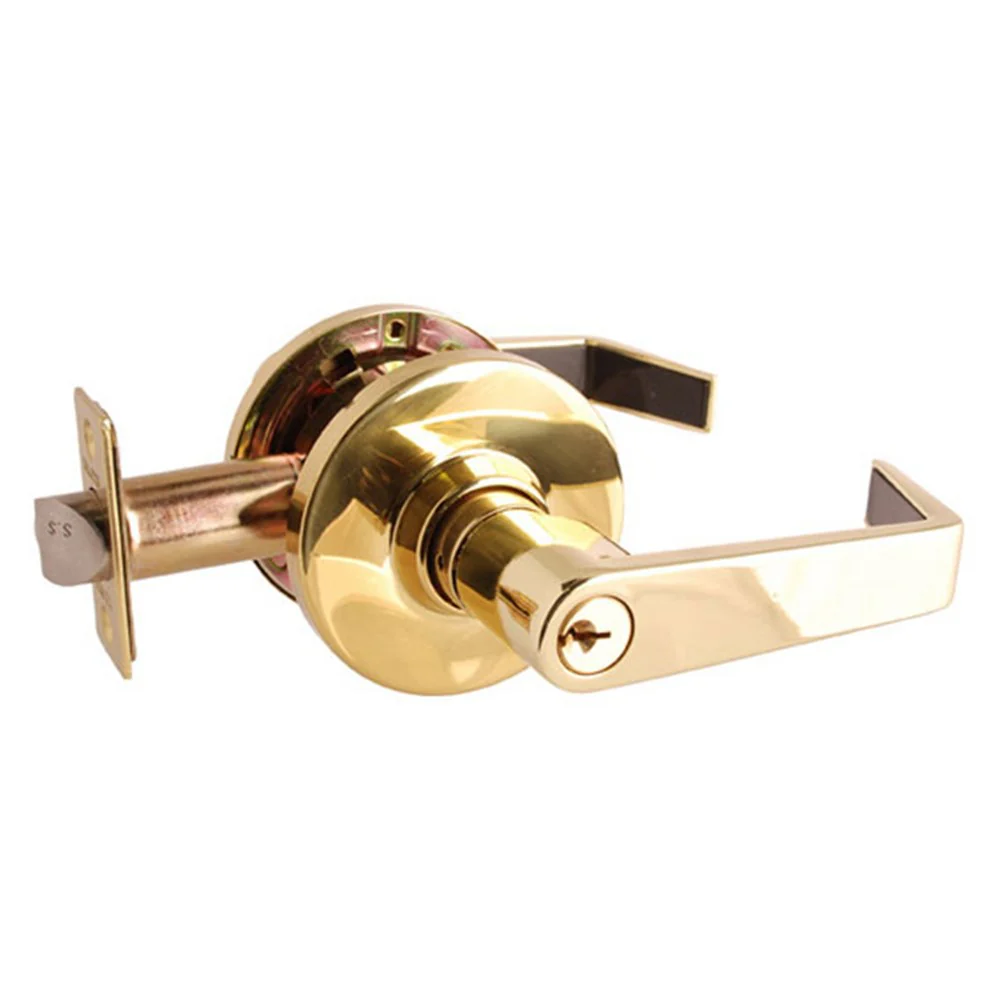

BRAVA Metro EL6000 series commercial grade Classroom Leverset 70 mm backset.

 BCA AS1428.1 -2009 compliant leverset.

Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets.

Entrance function

• Outside key locks and unlocks outside lever.
• Inside lever free at all times.

Additional info

• Cylindrical fixing.
• Silca LW5 profile 6 pin cylinder.
• Incorporates the popular PD 8221 barrel.
• Compatible with most restricted keying systems.
• Boxed and colour coded.
• 2 keys supplied.
• Fire rated.
• BCA compliant.

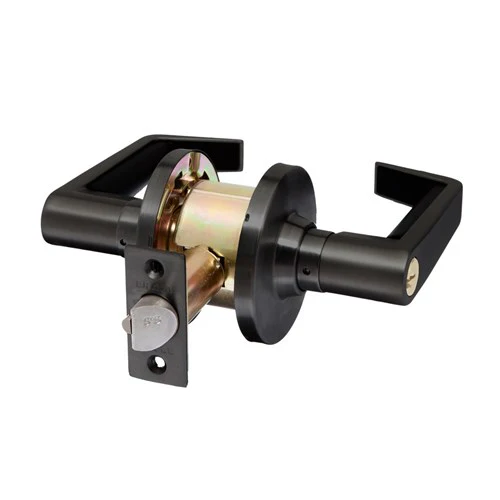

• Finished in Satin Chrome, Chrome Plate or Matt Black.

Door thickness	35-45 mm
Backset	70 mm
max. Lever / knob projection distance may not include turnsnib	63.7 mm
Strike	70 mm x 27 mm x 1.2 mm
Latch	70 mm
Latch face plate	57 mm x 25 mm
Cylinder	LW5 profile
Door handing	Non-handed knobs/levers
Rose	75 mm



Technical Specifications:

Brand	BRAVA
AS1428.1 Compliant Lever (AS1428.1CO)	Yes
Clutching Levers	No
Finish	Satin Chrome, Chrome Plate or Matt Black.
Function	Classroom
Lock Grade	Commercial
Lock Type	Cylindrical
Rose Diameter (in mm)	75
Suits Door Thickness	35 mm to 45 mm
Backset	70 mm
Fire Rated	Yes
