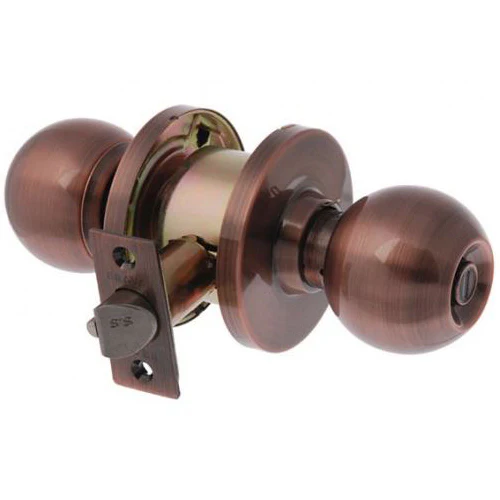

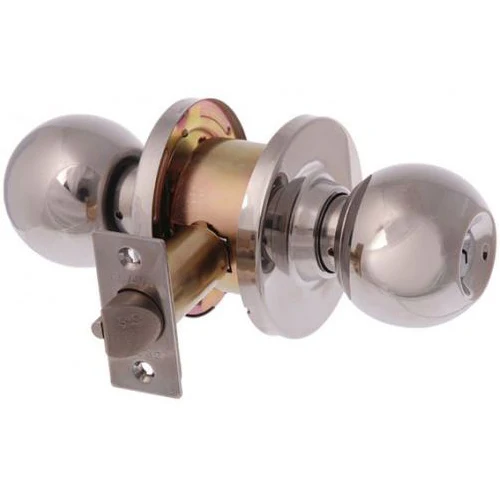

BRAVA EA SERIES COMMERCIAL ENTRANCE KNOB SET
BRAVA Metro EA3000 series commercial grade 60 mm backset entrance knobset.
Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets.
Entrance function
- Outside key unlocks outside knob.
- Inside knob free at all times, push button locks outside knob.
Additional info
- Cylindrical fixing.
- Silca LW5 profile 6 pin cylinder.
- Incorporates the popular PD 8221 barrel.
- Compatible with most restricted keying systems.
- Boxed and colour coded.
- 2 keys supplied.
- Fire rated.
- Finished in satin stainless steel, polished stainless steel, polished brass or antique copper.
| Door thickness | 35-45mm |
| Backset | 60mm |
|
max. Lever / knob projection distance may not include turnsnib |
69.5mm |
| Strike | 70mm x 27mm x 1.2mm |
| Latch | 60mm backset |
| Latch face plate | 57mm x 25mm |
| Cylinder | LW5 profile |
| Door handing | Non-handed knobs/levers |
| Rose | 75mm |
