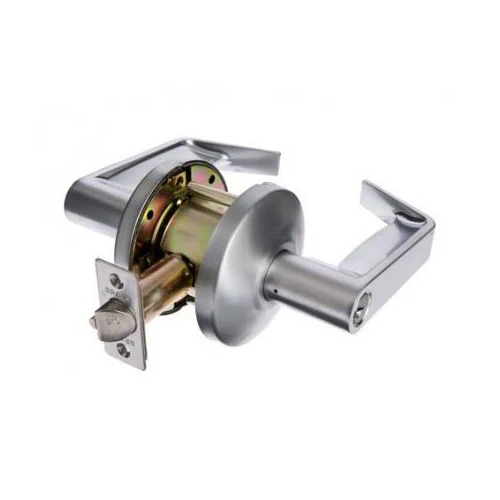

BRAVA EV SERIES COMMERCIAL LEVER SET (DDA COMPLIANT)
BRAVA Metro EV6000 series commercial grade entrance leverset with clutching levers.
BCA AS1428.1 -2009 compliant leverset.
Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets.
Entrance function
- Outside key locks and unlocks exterior lever.
- Inside lever free at all times, snib inside locks and unlocks outside lever.
Passage function
- Both outside and inside levers are always free.
Storeroom function
- Outside lever unlocked by key, lever retracts the latch.
-
Outside lever can not be left unlocked, key retained. - Inside lever free at all times.
Classroom function
- Outside key locks and unlocks outside lever
- Inside lever free at all times
Glass Door function
- Outside key locks and unlocks both levers.
- Inside key locks and unlocks both levers.
Privacy function
- Outside opened by lever when free. Can be opened in an emergency situation with a coin or screw driver.
- Inside opened by lever at all times, external lever locked with turn snib from inside
Institution function
- Key from either side retracts latch only.
- Levers on both sides clutching at all times.
Ā
Specifications
| Door thickness | 35 mm - 51 mm |
| Backset | 70 mm |
|
max. Lever / knob projection distance may not include turnsnib |
74 mm |
| Strike | 28 mm x 70 mm x 2 mm |
| Latch | 70 mm (12.7 mm throw) |
| Latch face plate | 57 mm x 25 mm |
| Cylinder | LW5 profile |
| Door handing | Non-handed levers |
| Rose | 85 mm |
