The Trencab key switch is a versatile easy to install unit that suits many applications such as a key override option on gates, boom gates, auto doors and mag-locks etc.

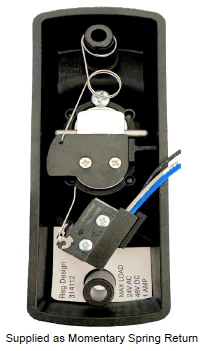

It is supplied as a spring loaded momentary function with the option to be changed to on/off with the cams provided.
Made from glass filled nylon for strength and IP67 rated it is ideal for external applications. 570 oval cylinder supplied.
Ā
Australian Made and Owned.
- On/off and spring return momentary key switch.
- 12 to 48Vdc or 24Vac.
- Suitable for indoor and outdoor applications.
- Dimensions 117 (L) x 42.5 (D) x 47 mm (W).
- Uses 570 cylinder LW4 version supplied.
- Rubber gasket standard.
- IP67 rated.
- 500 mm wiring leads attached.
- Body and cams made from tough glass filled nylon (black).

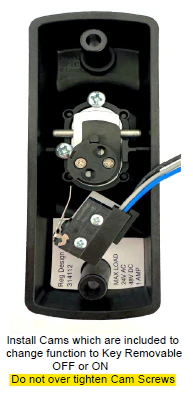

- On/off application cams provided.
- Compatible to most restricted keying systems.
- Now with snap-in screw covers.
- Supplied with 2 x stainless steel T20 Torx security screws.
