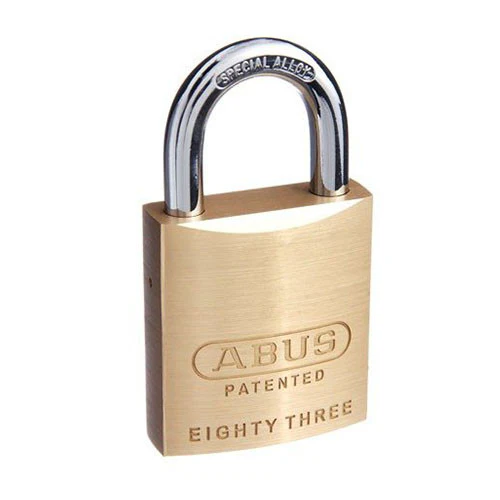

ABUS Padlock 83/45 series

Features and Functions:

• • Keyed to Differ (as standard)
  • 45 mm solid machined brass lock body.
  • Double ball locking.
  • Special alloy steel shackle with Nano-Protect™ plating.
  • 25 mm shackle as standard.
  • 8 mm shackle diameter.
  • Removable cylinder assembly for quick rekeying.
  • Incorporates the popular 570 6 pin style barrel.
  • Compatible with most restricted keying profiles.
  • Silca LW4 keyway.
  • Quick change shackle feature.
  • Easily converted from snap shut to key captive function.
  • Australian Standard AS4145.4 2002:
    Physical Security Rating SP6
    Corrosion Resistance Rating C4

  • Supplied boxed.

Dimensions:

a             Body width                                 47 mm

b             Horizontal Shackle Clearance    24 mm

c             Vertical Shackle Clearance         25 mm

d             Shackle diameter                       8 mm
