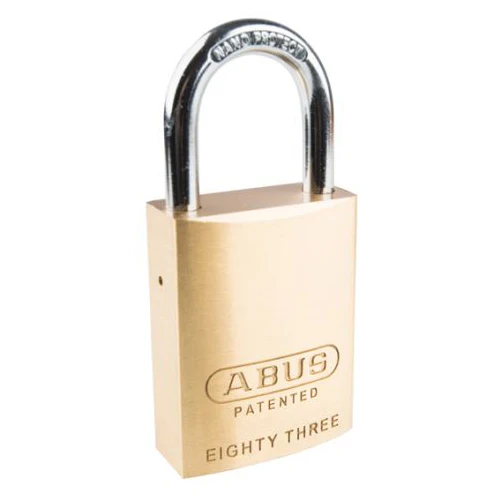

ABUS 83/40 series padlock. Supplied keyed to differ or keyed alike.

• 40 mm solid machined brass lock body.
• 6.4 mm special alloy steel shackle with Nano-Protect™ plating.
• 25 mm shackle as standard (range of replacement shackles are available).
• Double ball locking.
• Removable cylinder assembly for quick re keying.
• Incorporates the popular 570 6 pin style barrel.
• Silca LW5 keyway.
• Compatible with most restricted keying profiles.
• Quick change shackle feature.
• Easily converted from snap shut to key captive function.
• Supplied boxed.



a             Body width                                  40 mm

b             Horizontal Shackle Clearance     23 mm

c             Vertical Shackle Clearance           25 mm

d             Shackle diameter                         6.4 mm



Technical Specifications

Brand                      ABUS

Finish                      Brass

Is Rekeyable            Yes

Padlock Body Size   40 mm

Shackle Material    Special Alloy With Nano-Protect™ Plating

Key Profile             LW5

Material                 Brass

How is it Keyed     Keyed to Differ
