The LOCKTON CADELL Electronic Lever Mortice Lock Kit

The CADELL (Commercial and Domestic Electronic Lever Lock) is the latest evolution in the LOCKTON E-Series Range that is built to suit a wide variety of both Commercial and Domestic Applications including Apartment Blocks, Schools, Businesses, Hospitals, Government Buildings and Private Residences.

The CADELL is designed to effortlessly retrofit over existing Australian Mortice Lock installations.

The CADELL can also be used to replace existing installations of most knobsets, leversets and deadbolts on the market.

In addition, the CADELL furniture will fit over most existing Commercial Mortice Lock Furniture installations due to the fixing posts being positioned identically to the standard Australian Mortice Furniture Post Spacing.

IP66 Rating on both external and internal handles means this lock can be installed in almost any application
Lock can be accessed via PIN Code, Fingerprint, RFID Tag, Bluetooth/App Control and Key Override
Key Override via 6-Pin C4 Rekeyable Oval Cylinder that can be converted to restricted profiles
Easily use and Manage the lock via TTLOCK Phone App. Open the Lock, Add Users, Issue Temporary Codes and lots more
Optional Gateway accessories allow for remote access and control of lock via internet
Unlimited number of Bluetooth Users and Customised PIN Codes can be added to lock
Up to 1000 RFID Tags can be programmed and up to 100 Unique Fingerprint users can also be added
Internal Handle comes set as Passage but can be converted to include a Turn Snib for added security with included conversion kit
Also available in 95mm Backset Configuration

Lock is supplied with the following:

1 x CADELL52 Smart Lock Handle Set
2 x RFID Key Fobs
3 x Screw/Spindle Packs for varying Door Thicknesses
4 x AAA Batteries
1 x SG-ML60 60mm Backset Mortice Lock
1 x 6-Pin C4 Oval Cylinder
1 x Turnsnib Conversion Kit
1 x Fitting Template
1 x Instruction Manual

PRODUCT SPECIFICATION

IP Rating: IP66
Lock Backset: 60mm
Mortice Lock Faceplate Dimensions (L x W): 175 x 25mm
Mortice Lock Strike Plate Dimensions (L x W): 70 x 46mm
Handle Dimensions (H x W x D): 263 x 52 x 22mm
2mm Pressed 304 Stainless Steel
Handle Projection: 48mm
Furniture Material Thickness: 2mm
Suitable Door Thickness: 32-60mm
Suitable Door Weight: 20 to 120kgs
Batteries: 4 x 1.5V AAA Alkaline
Battery Life: Approx. 1 Year
3 Year Electronic Warranty (*)
10 Year Mechanical Warranty (*)

2-Hours : This product has been Fire tested & passed up to 2 hours

SL8 : Physical Security Rating

D8 : Durability Rating (500,000 Cycles)

Design for Access and mobility: This product complies with the Disability Access requirements of AS1428.1-2009 (DDA

CCTV IP

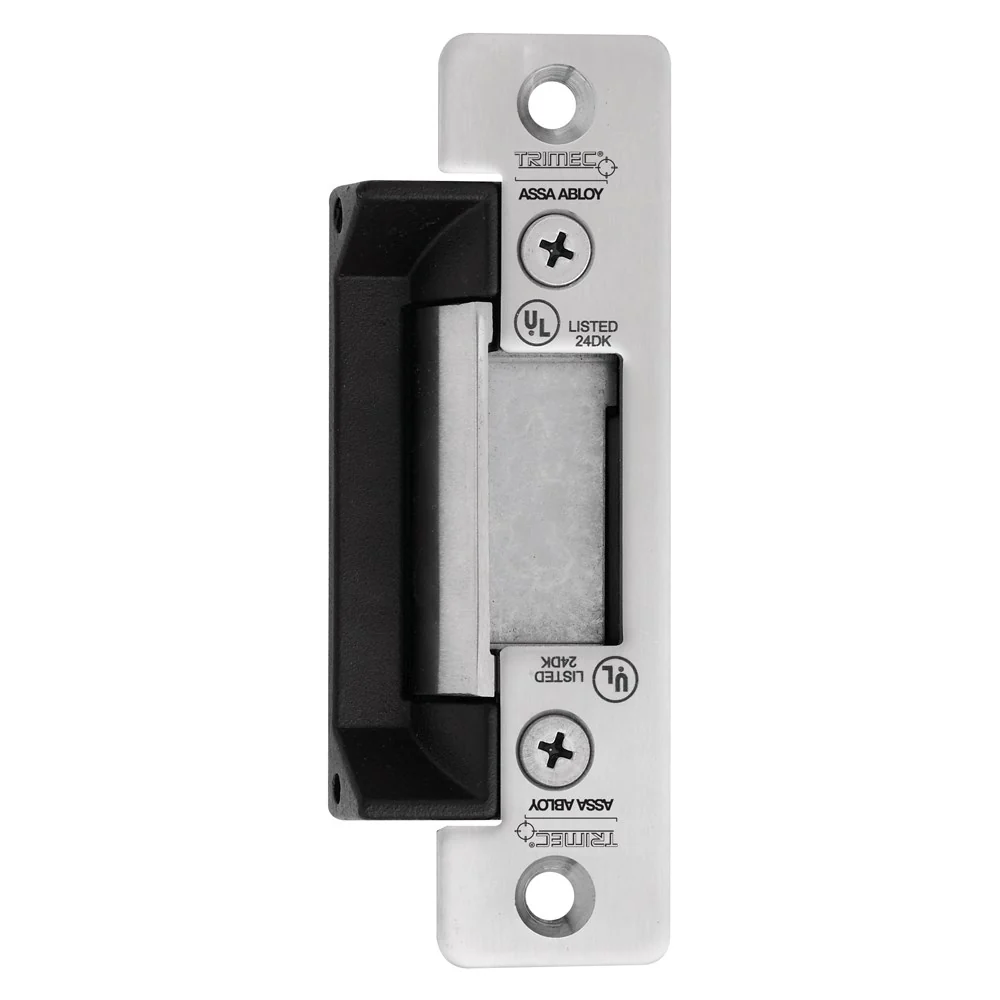

TRIMEC ES110 ELECTRIC STRIKE NON-MONITORED IP56
